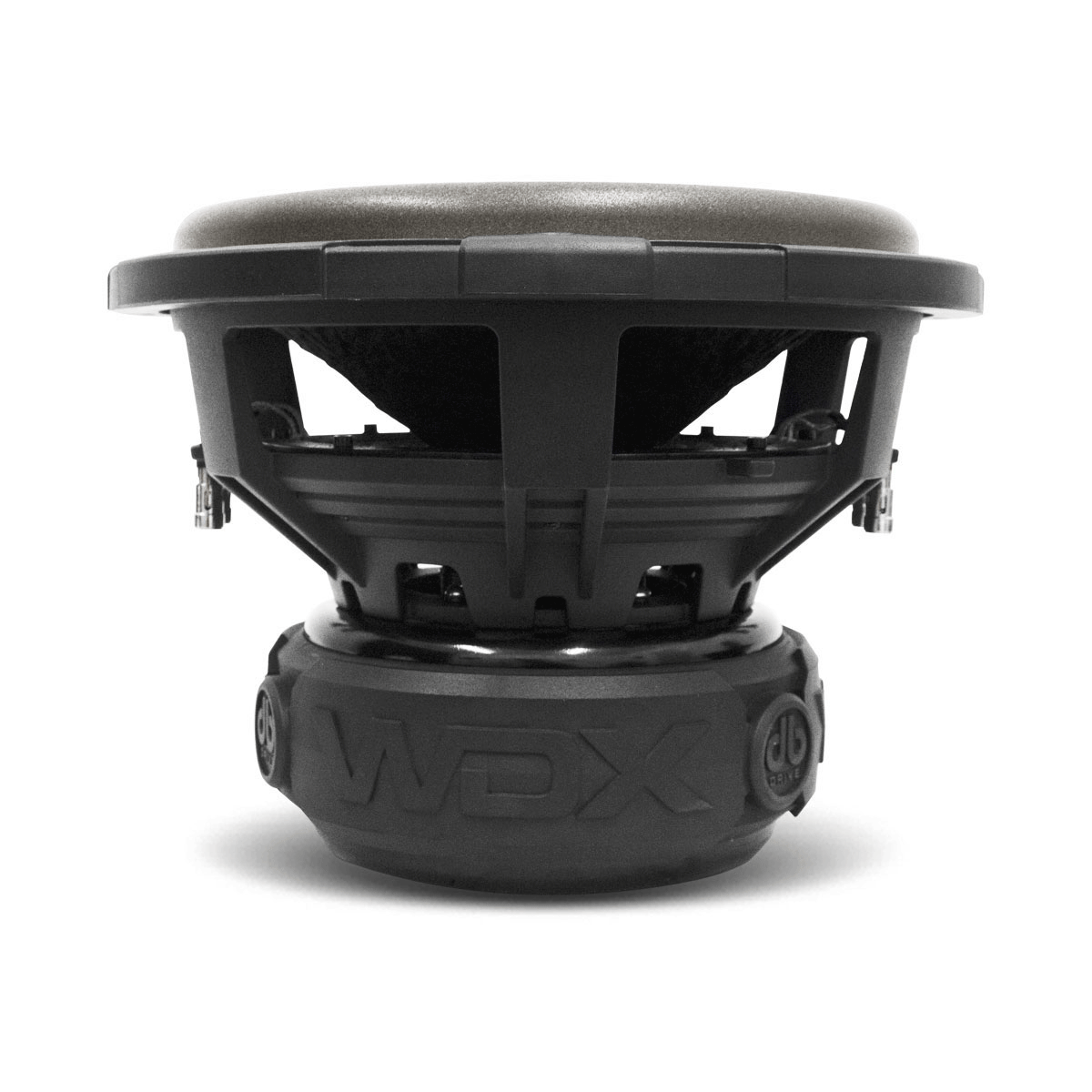

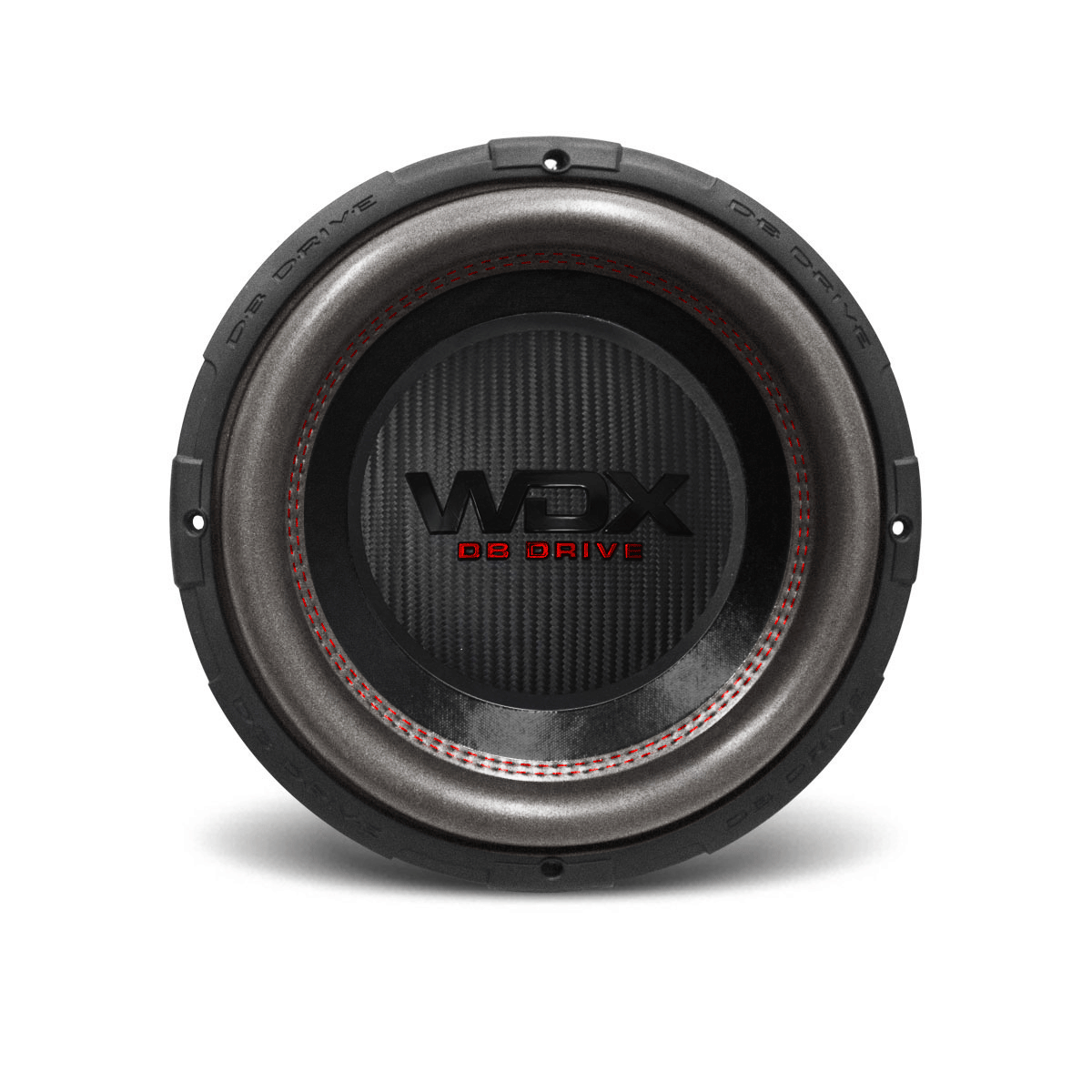

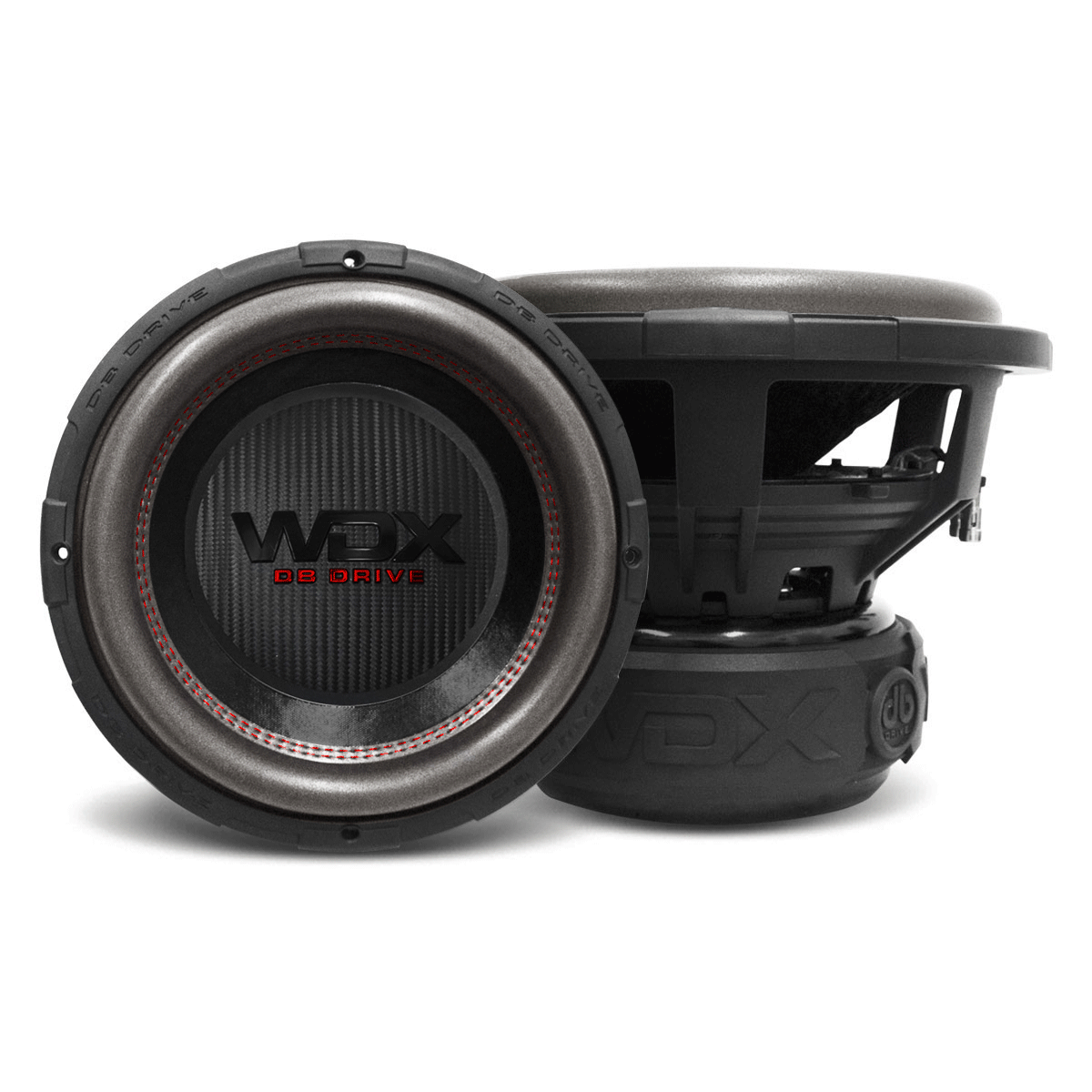

WDX12G5.2
WDX12G5.2
Regular price
$699.95 USD
Regular price
$749.95 USD
Sale price
$699.95 USD
Unit price
per
Shipping calculated at checkout.
| Outside Diameter (A) | 12.95″ (329mm) |
| Cutout Diameter (B) | 11.18″ (284mm) |
| Mounting Depth (C) | 8.01″ (203.5mm) |
| General Specifications | |
|---|---|
| Structure | 12″ (30.4cm) Woofer |
| Dynamic Power Handling | 6000 Watts |
| Nominal Power Handling | 3000 Watts |
| Impedance | Dual 2Ω Voice Coil |
| Parameters | |
|---|---|
| Resonant Frequency (fs) | 38.99Hz |
| D.C. Voice Coil Resistance (Re) | 2 x 2Ω |
| Mechanical Quality Factor (Qms) | 4.166 |
| Electrical Quality Factor (Qes) | 0.606 |
| Total Quality Factor (Qts) | 0.529 |
| Equivalent Air Volume to Cms (Vas) | 21.01 L |
| Mass of Diaphragm/Coil (Mms) | 317.437 kg |
| Force Factor (Bl) | 22.649 |
| Sound Pressure Level (SPL) | 85.0 dB |
