Sundown Audio

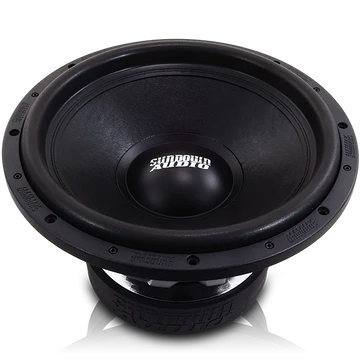

U Series 15" v.2 (1750 RMS)

Name: U Series 15" v.2 (1750 RMS)
Brand: Sundown Audio
Price: 569.99 USD
Availability: InStock

$569.99 USD

~~$683.99 USD~~ $569.99 USD

Sale Sold out

Shipping calculated at checkout.

{"id":8833829536054,"title":"U Series 15\" v.2 (1750 RMS)","handle":"u-series-15-v-2-1750-rms","description":"\n\u003cdiv class=\"\" uk-container\u003e \n    \u003cdiv class=\"\" tm-grid-expand uk-child-width-1-1 uk-grid-margin uk-grid uk-grid-stack\u003e\n        \u003cdiv class=\"\" uk-first-column\u003e\n\n\n       \u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003e                        Features (Uv.2-10 \/ 12 \/ 15 \/ 18)                    \u003c\/h3\u003e        \n        \n    \n        \n                \u003cdiv class=\"el-content uk-panel uk-margin-top\"\u003e\u003cul\u003e\n\u003cli\u003eBlack Aluminum 3” voice coil former for superior heat dissipation\u003c\/li\u003e\n\u003cli\u003eHigh Temperature Round-Wire ALU voice coil with high-temp black adhesive\u003c\/li\u003e\n\u003cli\u003eDouble stitched surround\u003c\/li\u003e\n\u003cli\u003eHeavy duty cast baskets – all new, custom-tooled\u003c\/li\u003e\n\u003cli\u003eSpring loaded terminals accept up to 8 gauge\u003c\/li\u003e\n\u003cli\u003eStitched-on double-XL tinsel leads\u003c\/li\u003e\n\u003cli\u003eSolid pole with vent channels and aluminum shorting ring cap\u003c\/li\u003e\n\u003cli\u003eRear drilled gap-venting\u003c\/li\u003e\n\u003cli\u003eInnovative high-velocity cast aluminum vented frame spacer ring\u003c\/li\u003e\n\u003cli\u003eMagnet ID shorting ring\u003c\/li\u003e\n\u003cli\u003eTop-Plate Cooling Channels\u003c\/li\u003e\n\u003cli\u003eCast Aluminum surround bolt-on rings\u003c\/li\u003e\n\u003cli\u003eOptimized for small ported or bandpass enclosures\u003c\/li\u003e\n \u003c\/ul\u003e\u003c\/div\u003e        \n        \n        \n    \n\u003ch3 class=\"\" uk-h4 uk-margin-remove-top\u003eUv.2-15\u003c\/h3\u003e\n\u003ctable class=\"\" uk-table uk-table-striped uk-table-small\u003e\n    \u003cthead\u003e\n        \u003ctr\u003e\n            \u003cth class=\"\" uk-text-nowrap\u003eT\/S Specs\u003c\/th\u003e\n            \u003cth class=\"\" uk-text-nowrap\u003e\u003cstrong\u003eUv.2 15\"\" D2\u003c\/strong\u003e\u003c\/th\u003e\n            \u003cth class=\"\" uk-text-nowrap\u003e\u003cstrong\u003eUv.2 15\"\" D4\u003c\/strong\u003e\u003c\/th\u003e\n        \u003c\/tr\u003e\n    \u003c\/thead\u003e\n    \u003ctbody\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eRE (Ohms)\u003c\/td\u003e\n            \u003ctd\u003e3.8279\u003c\/td\u003e\n            \u003ctd\u003e6.0586\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eFS (Hz)\u003c\/td\u003e\n            \u003ctd\u003e37.1918\u003c\/td\u003e\n            \u003ctd\u003e36.4015\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eVAS (L)\u003c\/td\u003e\n            \u003ctd\u003e43.5048\u003c\/td\u003e\n            \u003ctd\u003e46.1027\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eQes\u003c\/td\u003e\n            \u003ctd\u003e0.5463\u003c\/td\u003e\n            \u003ctd\u003e0.6170\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eQms\u003c\/td\u003e\n            \u003ctd\u003e5.4082\u003c\/td\u003e\n            \u003ctd\u003e5.5975\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eQts\u003c\/td\u003e\n            \u003ctd\u003e0.4962\u003c\/td\u003e\n            \u003ctd\u003e0.5557\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eLe (mH)\u003c\/td\u003e\n            \u003ctd\u003e3.4147\u003c\/td\u003e\n            \u003ctd\u003e4.6596\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eBL (NA)\u003c\/td\u003e\n            \u003ctd\u003e26.7943\u003c\/td\u003e\n            \u003ctd\u003e31.1468\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eMms (Grams)\u003c\/td\u003e\n            \u003ctd\u003e438.4924\u003c\/td\u003e\n            \u003ctd\u003e431.9457\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eCms (uM\/N)\u003c\/td\u003e\n            \u003ctd\u003e41.7623\u003c\/td\u003e\n            \u003ctd\u003e44.2561\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eSens (dB @ 1w\/1m)\u003c\/td\u003e\n            \u003ctd\u003e87.8716\u003c\/td\u003e\n            \u003ctd\u003e87.3156\u003c\/td\u003e\n        \u003c\/tr\u003e\n    \u003c\/tbody\u003e\n\u003c\/table\u003e\n\n  \n  \u003c\/div\u003e\n \u003c\/div\u003e\n\u003c\/div\u003e\n","published_at":"2023-10-08T14:49:13-05:00","created_at":"2023-10-08T14:49:13-05:00","vendor":"Sundown Audio","type":"subwoofer","tags":[],"price":56999,"price_min":56999,"price_max":56999,"available":true,"price_varies":false,"compare_at_price":68399,"compare_at_price_min":68399,"compare_at_price_max":68399,"compare_at_price_varies":false,"variants":[{"id":47199715459382,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"U Series 15\" v.2 (1750 RMS)","public_title":null,"options":["Default Title"],"price":56999,"weight":0,"compare_at_price":68399,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-000-eddfdda6.webp?v=1713735799","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-002-6827ff69.webp?v=1713735799","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-004-3d5e9e79.webp?v=1713735799","\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-001-429b4fe1.webp?v=1713735799"],"featured_image":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-000-eddfdda6.webp?v=1713735799","options":["Title"],"media":[{"alt":null,"id":40337358029110,"position":1,"preview_image":{"aspect_ratio":1.0,"height":580,"width":580,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-000-eddfdda6.webp?v=1713735799"},"aspect_ratio":1.0,"height":580,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-000-eddfdda6.webp?v=1713735799","width":580},{"alt":null,"id":40337357930806,"position":2,"preview_image":{"aspect_ratio":1.0,"height":360,"width":360,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-002-6827ff69.webp?v=1713735799"},"aspect_ratio":1.0,"height":360,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-002-6827ff69.webp?v=1713735799","width":360},{"alt":null,"id":40337357963574,"position":3,"preview_image":{"aspect_ratio":1.0,"height":360,"width":360,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-004-3d5e9e79.webp?v=1713735799"},"aspect_ratio":1.0,"height":360,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-004-3d5e9e79.webp?v=1713735799","width":360},{"alt":null,"id":40337357996342,"position":4,"preview_image":{"aspect_ratio":1.0,"height":360,"width":360,"src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-001-429b4fe1.webp?v=1713735799"},"aspect_ratio":1.0,"height":360,"media_type":"image","src":"\/\/www.bestsoundcaraudio.com\/cdn\/shop\/files\/Uv2-15-001-429b4fe1.webp?v=1713735799","width":360}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\n\u003cdiv class=\"\" uk-container\u003e \n    \u003cdiv class=\"\" tm-grid-expand uk-child-width-1-1 uk-grid-margin uk-grid uk-grid-stack\u003e\n        \u003cdiv class=\"\" uk-first-column\u003e\n\n\n       \u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003e                        Features (Uv.2-10 \/ 12 \/ 15 \/ 18)                    \u003c\/h3\u003e        \n        \n    \n        \n                \u003cdiv class=\"el-content uk-panel uk-margin-top\"\u003e\u003cul\u003e\n\u003cli\u003eBlack Aluminum 3” voice coil former for superior heat dissipation\u003c\/li\u003e\n\u003cli\u003eHigh Temperature Round-Wire ALU voice coil with high-temp black adhesive\u003c\/li\u003e\n\u003cli\u003eDouble stitched surround\u003c\/li\u003e\n\u003cli\u003eHeavy duty cast baskets – all new, custom-tooled\u003c\/li\u003e\n\u003cli\u003eSpring loaded terminals accept up to 8 gauge\u003c\/li\u003e\n\u003cli\u003eStitched-on double-XL tinsel leads\u003c\/li\u003e\n\u003cli\u003eSolid pole with vent channels and aluminum shorting ring cap\u003c\/li\u003e\n\u003cli\u003eRear drilled gap-venting\u003c\/li\u003e\n\u003cli\u003eInnovative high-velocity cast aluminum vented frame spacer ring\u003c\/li\u003e\n\u003cli\u003eMagnet ID shorting ring\u003c\/li\u003e\n\u003cli\u003eTop-Plate Cooling Channels\u003c\/li\u003e\n\u003cli\u003eCast Aluminum surround bolt-on rings\u003c\/li\u003e\n\u003cli\u003eOptimized for small ported or bandpass enclosures\u003c\/li\u003e\n \u003c\/ul\u003e\u003c\/div\u003e        \n        \n        \n    \n\u003ch3 class=\"\" uk-h4 uk-margin-remove-top\u003eUv.2-15\u003c\/h3\u003e\n\u003ctable class=\"\" uk-table uk-table-striped uk-table-small\u003e\n    \u003cthead\u003e\n        \u003ctr\u003e\n            \u003cth class=\"\" uk-text-nowrap\u003eT\/S Specs\u003c\/th\u003e\n            \u003cth class=\"\" uk-text-nowrap\u003e\u003cstrong\u003eUv.2 15\"\" D2\u003c\/strong\u003e\u003c\/th\u003e\n            \u003cth class=\"\" uk-text-nowrap\u003e\u003cstrong\u003eUv.2 15\"\" D4\u003c\/strong\u003e\u003c\/th\u003e\n        \u003c\/tr\u003e\n    \u003c\/thead\u003e\n    \u003ctbody\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eRE (Ohms)\u003c\/td\u003e\n            \u003ctd\u003e3.8279\u003c\/td\u003e\n            \u003ctd\u003e6.0586\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eFS (Hz)\u003c\/td\u003e\n            \u003ctd\u003e37.1918\u003c\/td\u003e\n            \u003ctd\u003e36.4015\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eVAS (L)\u003c\/td\u003e\n            \u003ctd\u003e43.5048\u003c\/td\u003e\n            \u003ctd\u003e46.1027\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eQes\u003c\/td\u003e\n            \u003ctd\u003e0.5463\u003c\/td\u003e\n            \u003ctd\u003e0.6170\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eQms\u003c\/td\u003e\n            \u003ctd\u003e5.4082\u003c\/td\u003e\n            \u003ctd\u003e5.5975\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eQts\u003c\/td\u003e\n            \u003ctd\u003e0.4962\u003c\/td\u003e\n            \u003ctd\u003e0.5557\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eLe (mH)\u003c\/td\u003e\n            \u003ctd\u003e3.4147\u003c\/td\u003e\n            \u003ctd\u003e4.6596\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eBL (NA)\u003c\/td\u003e\n            \u003ctd\u003e26.7943\u003c\/td\u003e\n            \u003ctd\u003e31.1468\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eMms (Grams)\u003c\/td\u003e\n            \u003ctd\u003e438.4924\u003c\/td\u003e\n            \u003ctd\u003e431.9457\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eCms (uM\/N)\u003c\/td\u003e\n            \u003ctd\u003e41.7623\u003c\/td\u003e\n            \u003ctd\u003e44.2561\u003c\/td\u003e\n        \u003c\/tr\u003e\n        \u003ctr\u003e\n            \u003ctd\u003eSens (dB @ 1w\/1m)\u003c\/td\u003e\n            \u003ctd\u003e87.8716\u003c\/td\u003e\n            \u003ctd\u003e87.3156\u003c\/td\u003e\n        \u003c\/tr\u003e\n    \u003c\/tbody\u003e\n\u003c\/table\u003e\n\n  \n  \u003c\/div\u003e\n \u003c\/div\u003e\n\u003c\/div\u003e\n"}

Product variants

Quantity

Features (Uv.2-10 / 12 / 15 / 18)

Black Aluminum 3” voice coil former for superior heat dissipation
High Temperature Round-Wire ALU voice coil with high-temp black adhesive
Double stitched surround
Heavy duty cast baskets – all new, custom-tooled
Spring loaded terminals accept up to 8 gauge
Stitched-on double-XL tinsel leads
Solid pole with vent channels and aluminum shorting ring cap
Rear drilled gap-venting
Innovative high-velocity cast aluminum vented frame spacer ring
Magnet ID shorting ring
Top-Plate Cooling Channels
Cast Aluminum surround bolt-on rings
Optimized for small ported or bandpass enclosures

Uv.2-15

T/S Specs	Uv.2 15"" D2	Uv.2 15"" D4
RE (Ohms)	3.8279	6.0586
FS (Hz)	37.1918	36.4015
VAS (L)	43.5048	46.1027
Qes	0.5463	0.6170
Qms	5.4082	5.5975
Qts	0.4962	0.5557
Le (mH)	3.4147	4.6596
BL (NA)	26.7943	31.1468
Mms (Grams)	438.4924	431.9457
Cms (uM/N)	41.7623	44.2561
Sens (dB @ 1w/1m)	87.8716	87.3156

View full details
