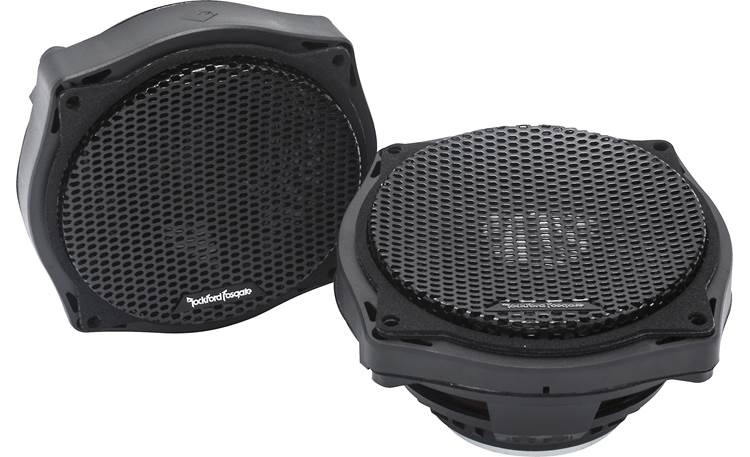

TMS6SG

The TMS6SG full range coaxial speaker is designed for direct fitment applications on select model (see compatibility chart) Harley-Davidson® Electra Glide® and Street Glide® motorcycles in the upper fairing locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.

Harley-Davidson® and Street Glide® are registered trademarks of Harley-Davidson Motor Company

FEATURES AT A GLANCE

• Element Ready design that is weather and water resistant
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Carbon Fiber Reinforced Polypropylene Cone
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• High Power 35mm Voice Coil
• Ultra‐Efficient Neodymium Ring Magnet Motor
• Santoprene Front Isolation Spider
• Poly‐Cotton Spider
• Ultra‐High Temperature Glass Reinforced Polymer Frame
• Santoprene VAST Surround
• Co‐Molded Cone and Surround
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Integrated Spade Terminals
• Designed for 1998‐2013 Harley-Davidson® Electra Glide® / Street Glide® Fairing Locations
• NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
• Low Profile Coaxial Tweeter Design
• Discreet (Hidden) Tweeter Wire
• 2-Year Warranty
