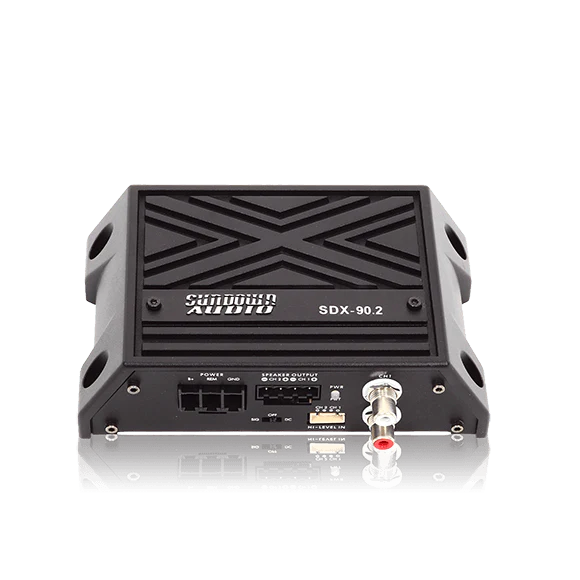

SDX-90.2

• High Efficiency Digital Multi-Channel Design
• 12dB/Octave-Variable High Pass Filter
• 12dB/Octave-Variable Low Pass Filter
• DC Auto sense feature
• 4 Way Protection Circuit (Thermal,
• Voltage Speaker short and DC Offset)
• Optional Wired Remote Control

• 2 Channel Class D Amplifier
• 2 x 90W @ 4 Ohm
• 2 x 120W @ 2 Ohm
• Bridge 4 Ohm: 350W x 1 Ch
• S/N: >88dB
• Cast Aluminum Heat Sync
• Water Resistant
• Highpass / Lowpass / Bandpass Filter
• Gain Adjustment
• Suitable for vehicles with start / stop function
• Dimensions in Inch (L x W x H): 5.83" x 3.43" x 1.73"

Note: Unscrew the badge using an allen key to access audio settings.
