The R2-A60F is class-leading in every way by combining both power output and high-definition sound with Hi-Res Audio specifications to allow your music to remain faithful to the original recording with realism and authority, that puts you right in the center of the performance.
Smaller and more powerful than ever. Alpine’s all-new exclusive digital design architecture has enabled the footprint size to be significantly reduced without compromising on audio specifications and power output. In fact, they are 15% smaller than their predecessors and the completely new R2-A150M is Alpine’s most powerful ever in a highly compact chassis.
These pint-sized, yet potent amplifiers gives you enormous and effortless power delivery, coupled with incredible audiophile-grade sound quality, making them the perfect choice for the astute system builder enthusiast and discerning music fans.
Born to be played Loud—the all-new R-Series gives you legendary performance with extreme power output matched with unrivalled sound quality and reliability.
All-new Bold Design
Compact Chassis
Easy Access Controls

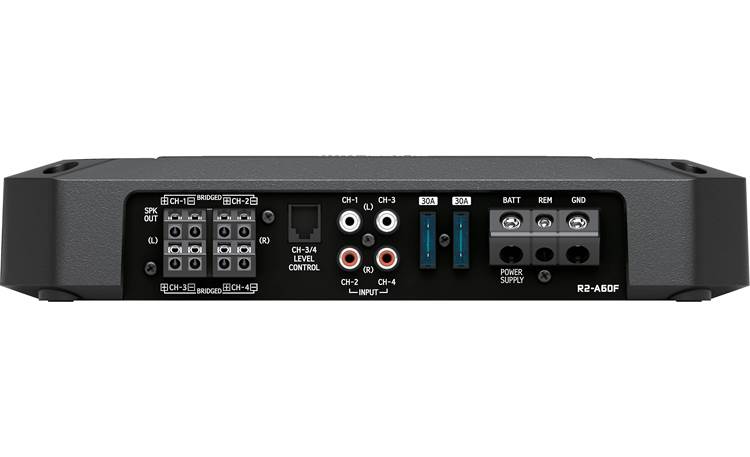

RCA and Speaker Level Inputs
Bandpass Filter
Superior Sound Stage
Bridgeable
Bass EQ
Variable High Pass/Low Pass Filters
Thermal Protection
Hi-Res Audio Certified
Output Channels: 4/3/2 Channels
Power (@14.4V 1% THD)
Per Channel into 4 Ohms: 100W X 4
Per Channel into 2 Ohms: 150W X 4
Bridged 4 Ohms: 300W X 2 [4Ω@14.4V]
Max Power Output: 1200W
Ref.: 10W into 4Ω: ≤0.04%
Ref.: 10W into 2Ω: ≤0.06%
Ref.: Rated Power into 4Ω: ≤0.5%
Ref.: Rated Power into 2Ω: ≤1.0%
IHF A-wtd +AES-17 Ref.: 1W into 4Ω: >80 dB
IHF A-wtd +AES-17 Ref.: Rated Power into 4Ω: >100 dB
Frequency Response: 10Hz-45kHz (+/-3dB)
Damping Factor: >100
Selectable Input Signal Configuration (2ch/4ch Input)
