PXE-X09

• DSP adjustments and settings made via Bluetooth device, Windows PC via USB, or wired remote
• includes wired LCD remote control, Bluetooth adapter, and USB cable
• 16-channel digital signal processor
  • download PXE-X09 Tuning App for iOS or Android device from the Apple APP or Google Play Store
  • download PXE-X09 Sound Manager for Windows at Alpine.com

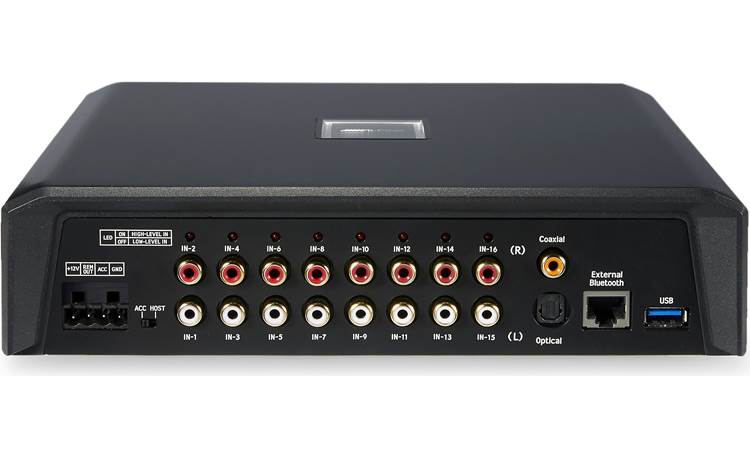

• inputs: 16 assignable preamp and speaker-level, optical and coaxial digital
  • RCA adapters for speaker-level inputs included
• outputs: 16 processed channels (RCA)
• 16-channel 24-bit 96 KHz digital processor
• 10-band input equalization (graphic or parametric)
• 31-band output equalization (graphic or parametric)
• adjustable high-, low-, and band-pass filters (20-20,000 Hz)
  • selectable filter slopes (12, 18, 24, 30, 36, 42, 48 dB/octave)
  • selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley)
• delay: 0-20 milliseconds (0-273")
• phase adjustment: 0 or 180°

More Info:

• built-in real-time analyzer (RTA)
• can store and recall up to 6 presets
• dimensions: 9-3/4"W x 2-5/16"H x 8-5/16"D

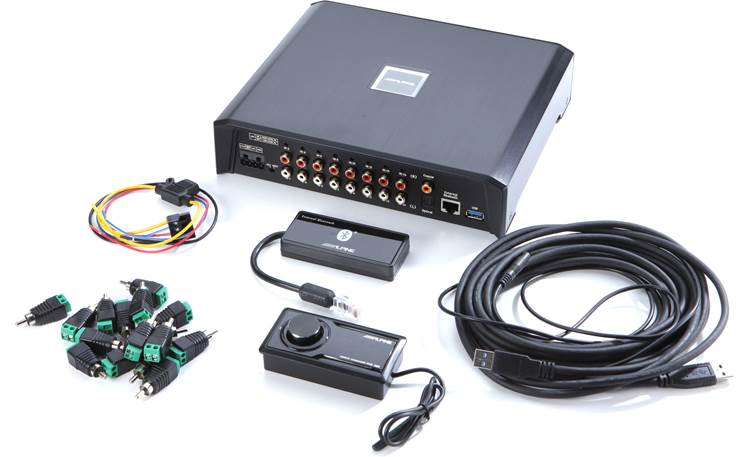

  • 16-Channel DSP processor

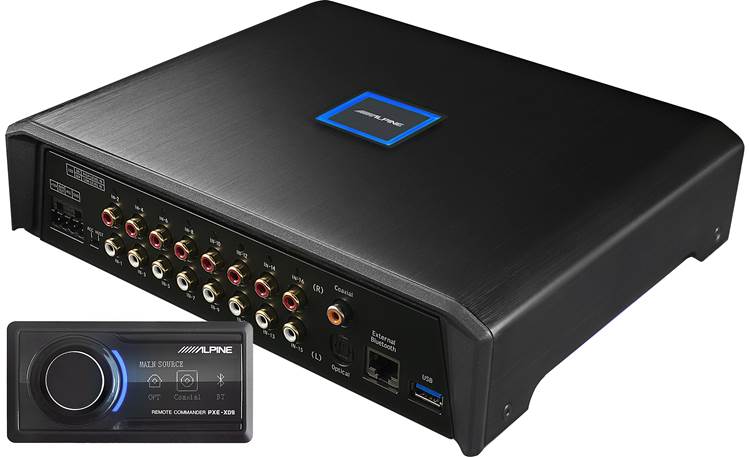

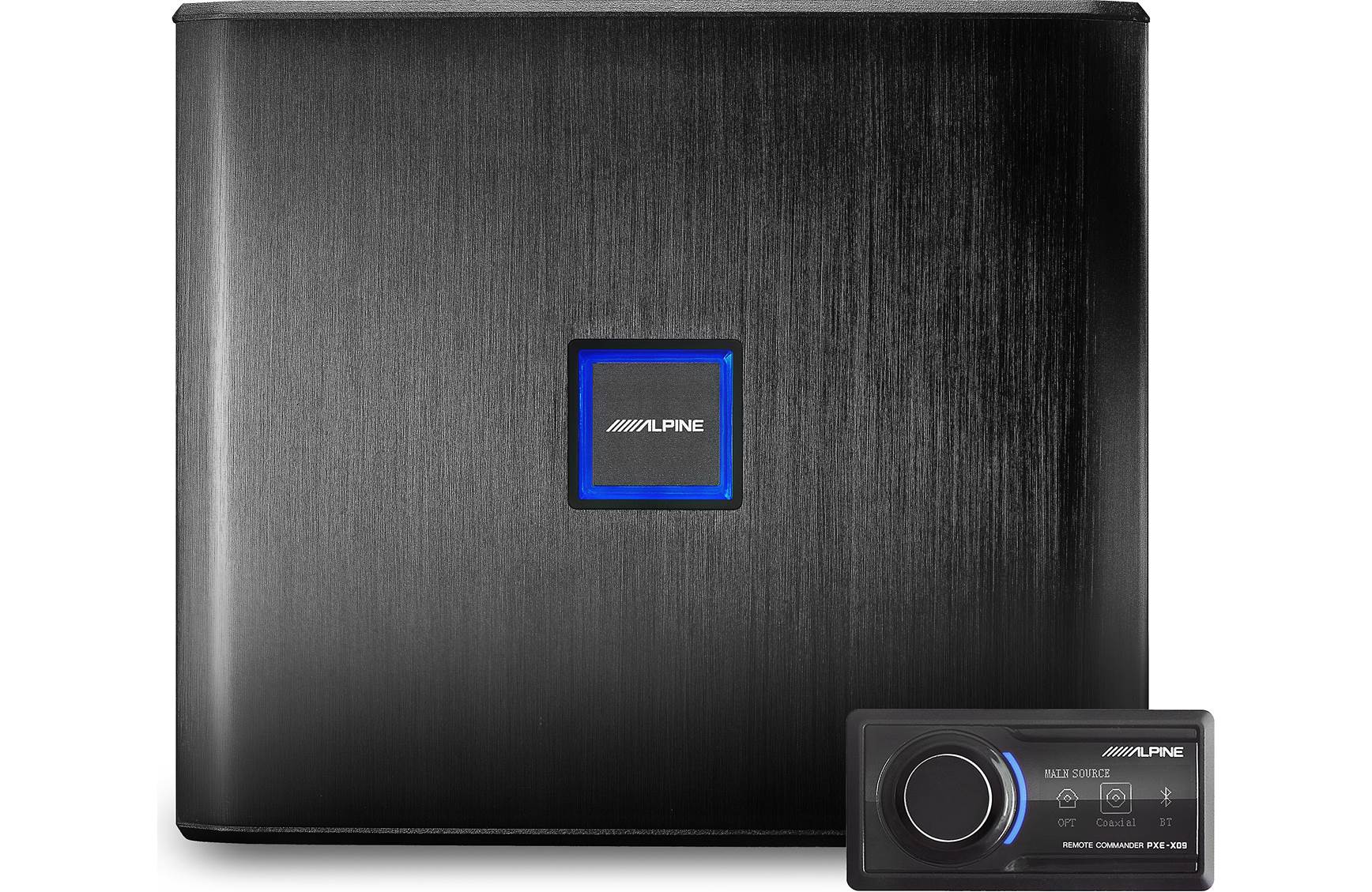

  • Dash-mount remote commander w/ attached 15.5" connector (4-pin proprietary)
  • Bluetooth module w/ attached 5" connector (RJ-45)
  • 16' USB Cable (type-A 3.0 both ends) w/ attached 46" remote commander cable (4-pin proprietary)
  • 16 Input connectors (RCA to set-screw terminals)
  • 12" 4-Pin wiring harness (inline 10A mini-ATC fuse)
  • 4 Mounting brackets
  • Four 3/4" screws
  • Eight 1/8" machine-screws
  • Owner's manual
  • Warranty information
