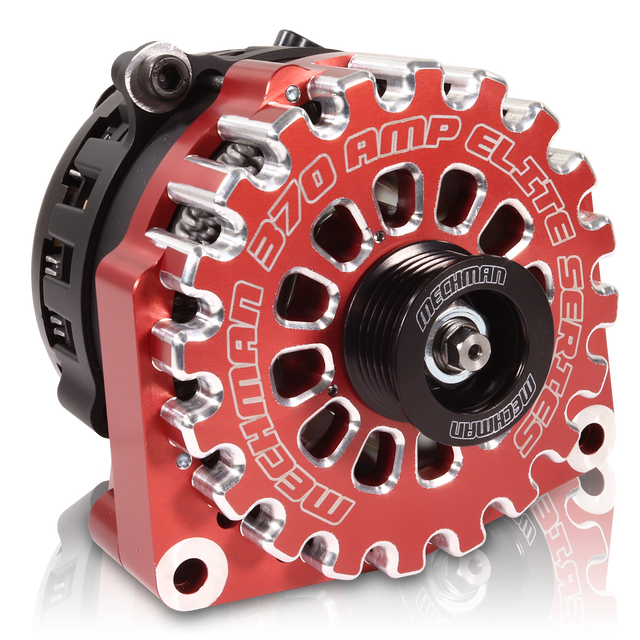

MECHMAN E Series 370 amp Red Billet 96-04 GM Truck
MECHMAN E Series 370 amp Red Billet 96-04 GM Truck
- SKU:
- B8206370RD
- Availability:
- Most alternators are custom built to order. Standard build time is 2-3 weeks. If you need an alternator sooner than that, please contact a sales associate to see if any in-stock options are available.
- Weight:
- 17 LBS
Buy in monthly payments with Affirm on orders over $50. Learn more
Installation Notes:
This unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt for proper belt tension. Not recommended for sustained use above 5,000 RPM engine speed.
E Series
Newly redesigned for 2020, The Elite series offers the highest possible amperage and durability available in a large case alternator. 6 phase technology combined with massive twin rectifier assemblies and 12 diodes makes these alternators totally durable for daily use, while still maintaining 200+ amps at engine idle speeds. Some models are available with adjustable voltage, ask a sales rep for more details.
Installation Notes:
This unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt for proper belt tension.
This unit may require a rectangle to oval adapter harness if the vehicle is equipped with the HD charging option from the factory. (not common)
Name | Model | Engine | Year(s) | Amperage |
---|---|---|---|---|
BUICK | Rainier | 5.3 | 04-06 | 370a |
CADILLAC | Escalade | 5.7 / 6.0 / 6.2 | 99-04 | 370a |
CHEVROLET | Astro | 4.3 | 96-05 | 370a |
CHEVROLET | Avalanche | All Engines | 02-04 | 370a |
CHEVROLET | Camaro | 5.0 / 5.7 | 98-02 | 370a |
CHEVROLET | Full Size Truck/Silverado | 4.3 | 96-04 | 370a |
CHEVROLET | Full Size Truck/Silverado | 4.8 | 99-04 | 370a |
CHEVROLET | Full Size Truck/Silverado | 5.0 | 96-99 | 370a |
CHEVROLET | Full Size Truck/Silverado | 5.3 | 99-04 | 370a |
CHEVROLET | Full Size Truck/Silverado | 5.7 | 96-00 | 370a |
CHEVROLET | Full Size Truck/Silverado | 6.0 | 99-04 | 370a |
CHEVROLET | Full Size Truck/Silverado | 7.4 | 96-00 | 370a |
CHEVROLET | Full Size Truck/Silverado | 8.1 | 01-05 | 370a |
CHEVROLET | S-10 / Blazer | 4.3 | 96-04 | 370a |
CHEVROLET | SSR | 5.3 / 6.0 | 03-06 | 370a |
CHEVROLET | Suburban | All Gas Engines | 96-04 | 370a |
CHEVROLET | Tahoe/Full Size Blazer | All Gas Engines | 96-04 | 370a |
CHEVROLET | Trailblazer | 5.3 | 03-06 | 370a |
CHEVROLET | Trailblazer | 6.0 | 03-06 | 370a |
GMC | Envoy | 5.3 | 03-06 | 370a |
GMC | Full Size Truck / Sierra | 4.3 | 96-04 | 370a |
GMC | Full Size Truck / Sierra | 4.8 | 99-04 | 370a |
GMC | Full Size Truck / Sierra | 5.0 | 96-99 | 370a |
GMC | Full Size Truck / Sierra | 5.3 | 99-04 | 370a |
GMC | Full Size Truck / Sierra | 5.7 | 96-00 | 370a |
GMC | Full Size Truck / Sierra | 6.0 | 99-04 | 370a |
GMC | Full Size Truck / Sierra | 7.4 | 96-00 | 370a |
GMC | Full Size Truck / Sierra | 8.1 | 01-05 | 370a |
GMC | S-15 | 4.3 | 96-04 | 370a |
GMC | Safari | 4.3 | 94-04 | 370a |
GMC | Suburban | All Gas Engines | 96-04 | 370a |
GMC | Yukon | All Gas Engines | 96-04 | 370a |
HUMMER | H2 | 6.0 | 03-07 | 370a |
OLDSMOBILE | Bravada | 4.3 | 94-01 | 370a |
PONTIAC | Firebird | 5.0 / 5.7 | 98-02 | 370a |
