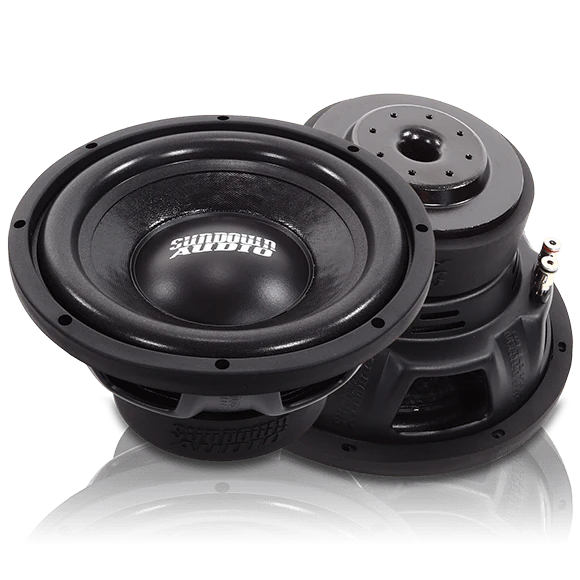

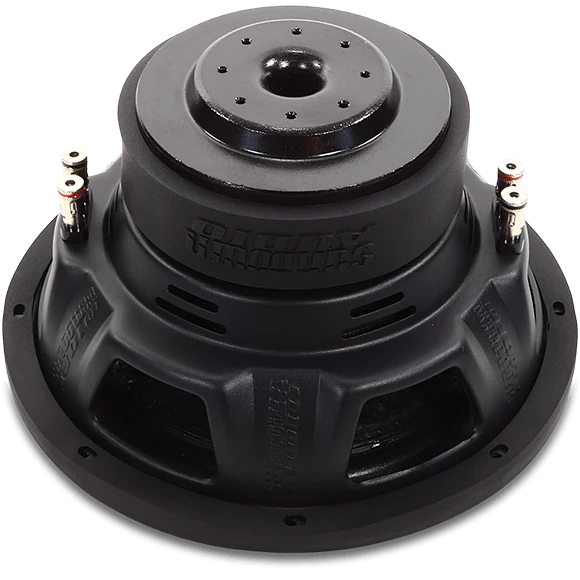

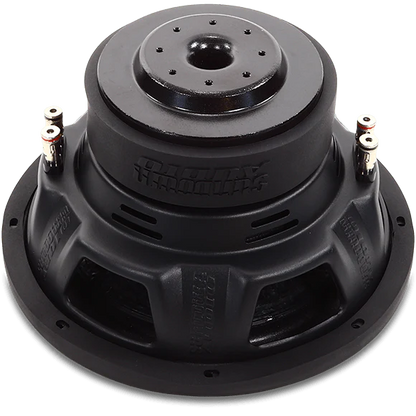

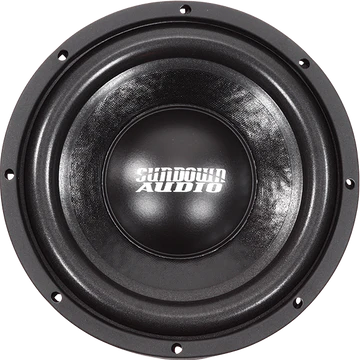

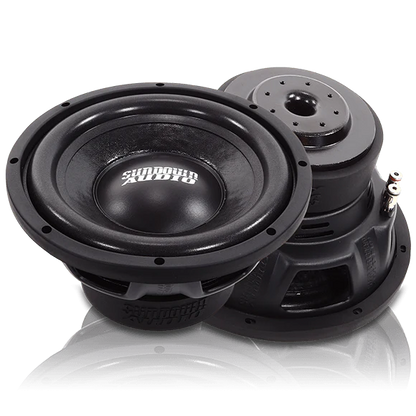

LCS-10 v.2 D4 (300-watts RMS)

Features

• Xmax = 14mm one-way by 70% BL
• RMS Power = 300-watts
• Vented magnetic gap
• Vented Pole piece with chamfered edges for increased air powered voice coil cooling
• Custom tooled & vented, extra thick stamped steel frame
• Black Aluminum 2” voice coil former for superior heat dissipation
• High Temperature 4-Layer copper voice coil wire
• High Quality Push Terminals
• Stitched-On Flat Tinsel Leads to prevent fatigue and failure
• Optimized for small, ported enclosures

Specifications

T/S Specs	LCS v.2 10?D4
RE (Ohms)	7.140
FS (Hz)	34.642
VAS (L)	27.182
Qes	0.500
Qms	3.377
Qts	0.436
Le (mH)	coming soon...
BL (NA)	19.313
Mms (Grams)	120.124
Cms (uM/N)	175.713
Sens (dB @ 1w/1m)	85.4
