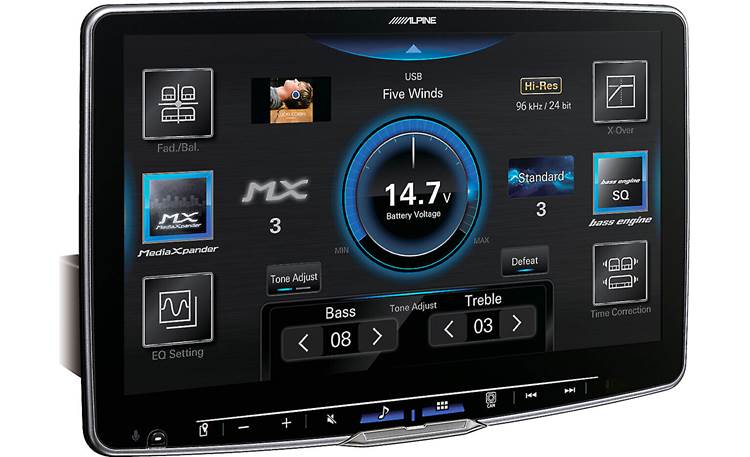

iLX-F511

General features:

• digital multimedia receiver with AM/FM tuner (does not play discs)
• 11" hi-res capacitive touchscreen with adjustable vertical mounting positions and viewing angles
• high-resolution (1280x720 pixels) display
• fits single-DIN dash openings
• HD Radio tuner built-in
• • Apple CarPlay compatible (wired and wireless)
  • Android Auto compatible (wired and wireless)
  • built-in iPod, iPhone, and iPad control
  • playback and control of music files on compatible Android devices
  • Pandora and Spotify control with iPhone and Android
  • full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)
  Bluetooth hands-free calling and audio streaming (external microphone included)
  • plays MP3, WMA, AAC, APE, and FLAC music files (see Details tab for full capabilities)
  • plays AVC, FLV, H,264, MP4, MPEG-4, and MOV video files
  • plays lossless FLAC audio files up to 96kHz/24-bit
  • 24-bit digital-to-analog converter (DAC)
  • 13-band parametric equalizer (Basic and Advanced options)
  • 6-channel time correction
  • high- and low-pass filters
  • Bass Engine SQ
  • MediaXpander HD

    Expandability:

    • works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
    • inputs: 2 rear USB ports; rear HDMI input; rear auxiliary input; 2 proprietary camera inputs (one composite video adapter is included for non-Alpine cameras)

    • outputs: HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)
    • Important Note — Monitor dimensions are 10.585" x 6.995". Before ordering, check for possible interference with your dash.
    • wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
    • built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)
    • compatible with most factory steering wheel audio controls (adapter required)
    • CTA-2006 compliant
    • compatible with iDatalink Maestro
      • retains factory features in a wide selection of vehicles
      • displays engine performance data on touchscreen
        • 11" Touchscreen monitor
        • Source unit
        • Wiring harness (15A fuse)
        • Preout harness
        • iDatalink/Driver Recorder/Front Camera harness
        • Camera input adapter harness
        • Mic/SWC harness
        • Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
        • Surface-mount bracket
        • Two-sided tape
        • GPS antenna (attached 8' cable with proprietary connector)
        • Self-adhesive mounting pad
        • 3 Self-adhesive cable clamps
        • Power-plate
        • 2 Rear covers
        • HDMI connector clamp
        • 4 Pan-head ISO-screws (M5x8mm)
        • 4 Counter-sunk ISO-screws (M5x8mm)
        • 3 Display screws (M5x8mm)
        • 2 Hinge screws (M3x4mm)
        • 2 Rear cover screws (M2.6x6mm)
        • 4 Rectangle self-adhesive sheets
        • 4 Square self-adhesive sheets
        • 2 Round self-adhesive sheets
        • 2 Semi-oval self-adhesive sheets
        • Quick Reference Guide
        • Online Registration Information
        • Online Detailed Manual Card
