iLX-407

General Features:

• digital media receiver with AM/FM tuner (does not play discs)
• 7" capacitive touchscreen

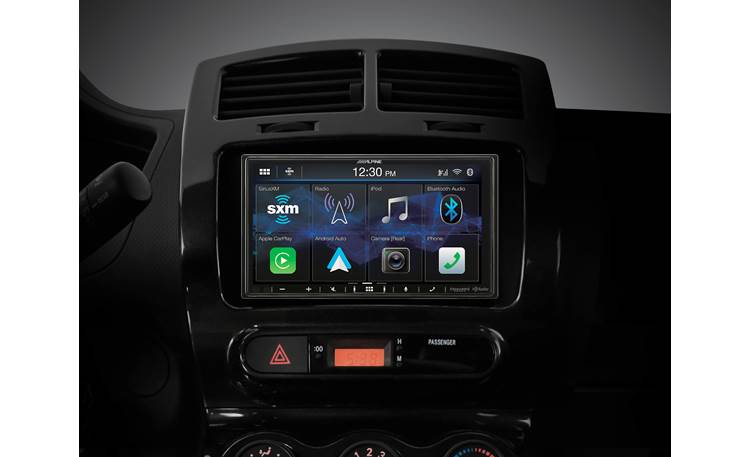

• fits double-DIN dash openings

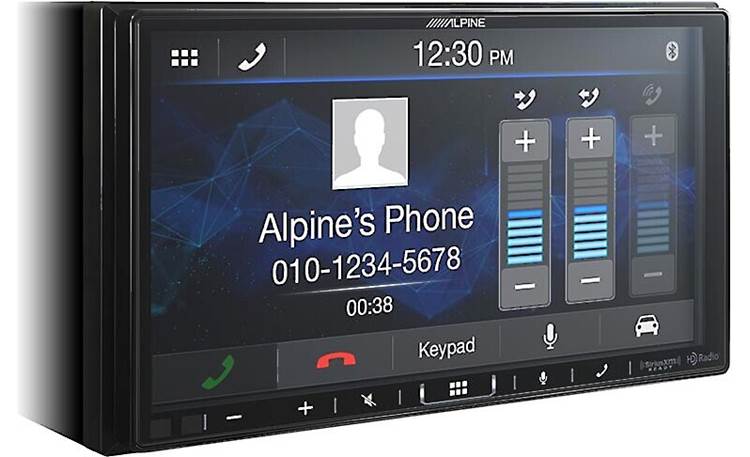

• Bluetooth hands-free calling and audio streaming

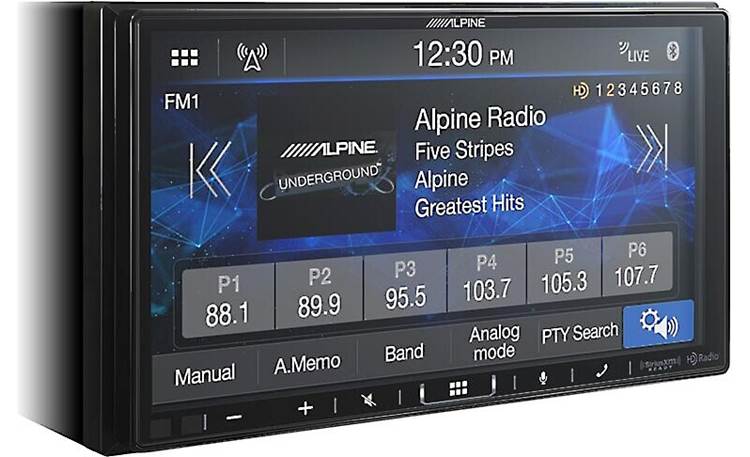

• HD Radio tuner built-in
• Apple CarPlay and Android Auto compatible
• built-in iPod, iPhone, and iPad control
• playback and control of music files on compatible Android devices

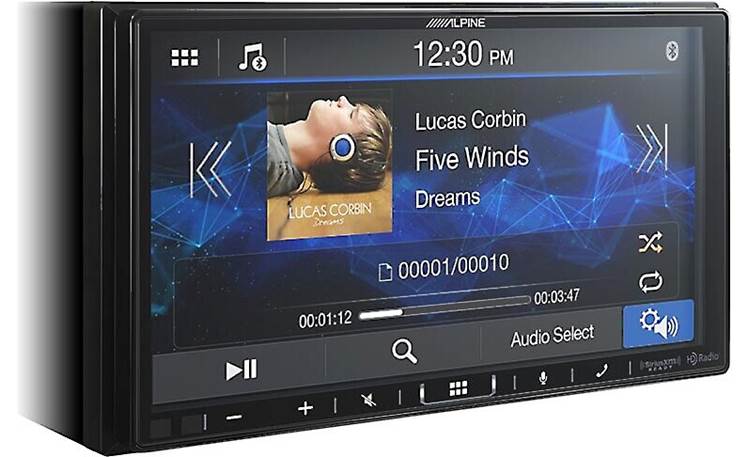

• plays MP3, WMA, AAC, WAV, and FLAC music files (see Details for full capabilities)
• plays AVI and MPEG4 video files
• 5-band graphic equalizer with time correction
• 10 EQ curve presets
• high- and low-pass filters
• Bass Engine SQ
• MediaXpander HD

Expandability:

• works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
• works with Alpine PowerStack amplifiers in most dash openings

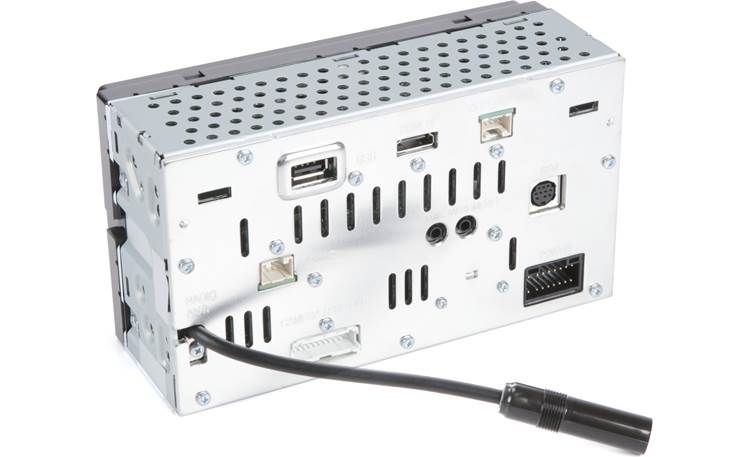

• inputs: rear USB port, rear HDMI input, rear 3.5mm mini A/V input, front- and rear-view camera inputs
• outputs: rear composite video output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other Information:

• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
• built-in internal amp (16 watts RMS CTA-2006 x 4 channels/50 watts peak)
• compatible with most factory steering wheel audio controls (adapter required)
• compatible with iDatalink Maestro
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen

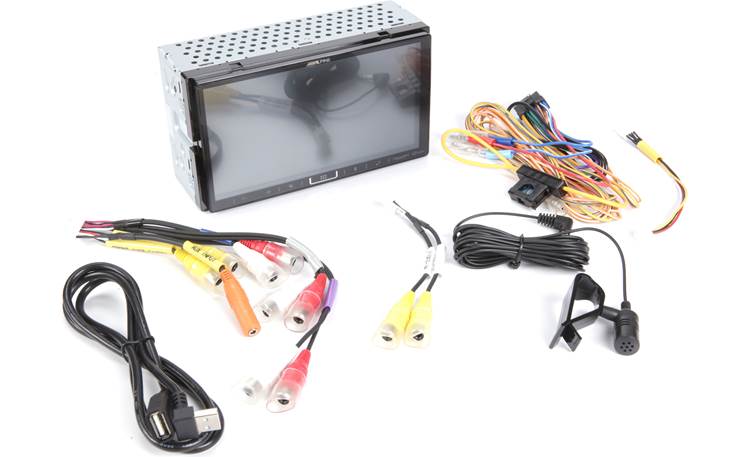

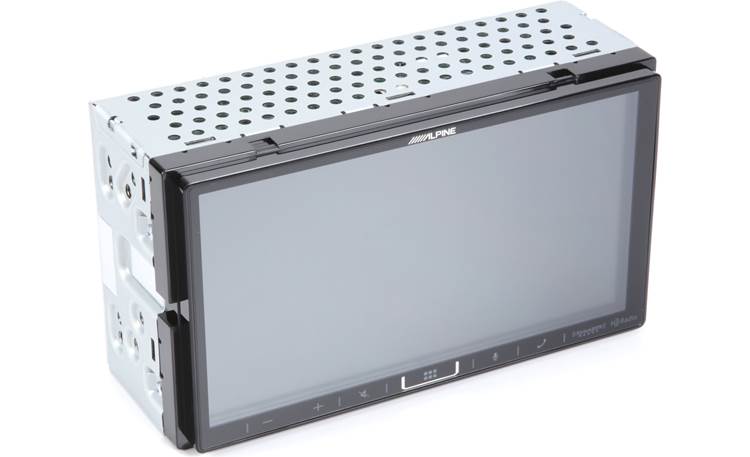

    • Digital multimedia receiver
    • Wiring harness (15A fuse)
    • Preout/Camera harness
    • Video in/out harness
    • iDatalink harness
    • 41" USB extension cable
    • Microphone (attached 13' cable terminated by a male 3.5mm stereo connector)
    • Bracket (for microphone)
    • 4 ISO-screws
    • Quick Reference Guide
    • Registration Card
