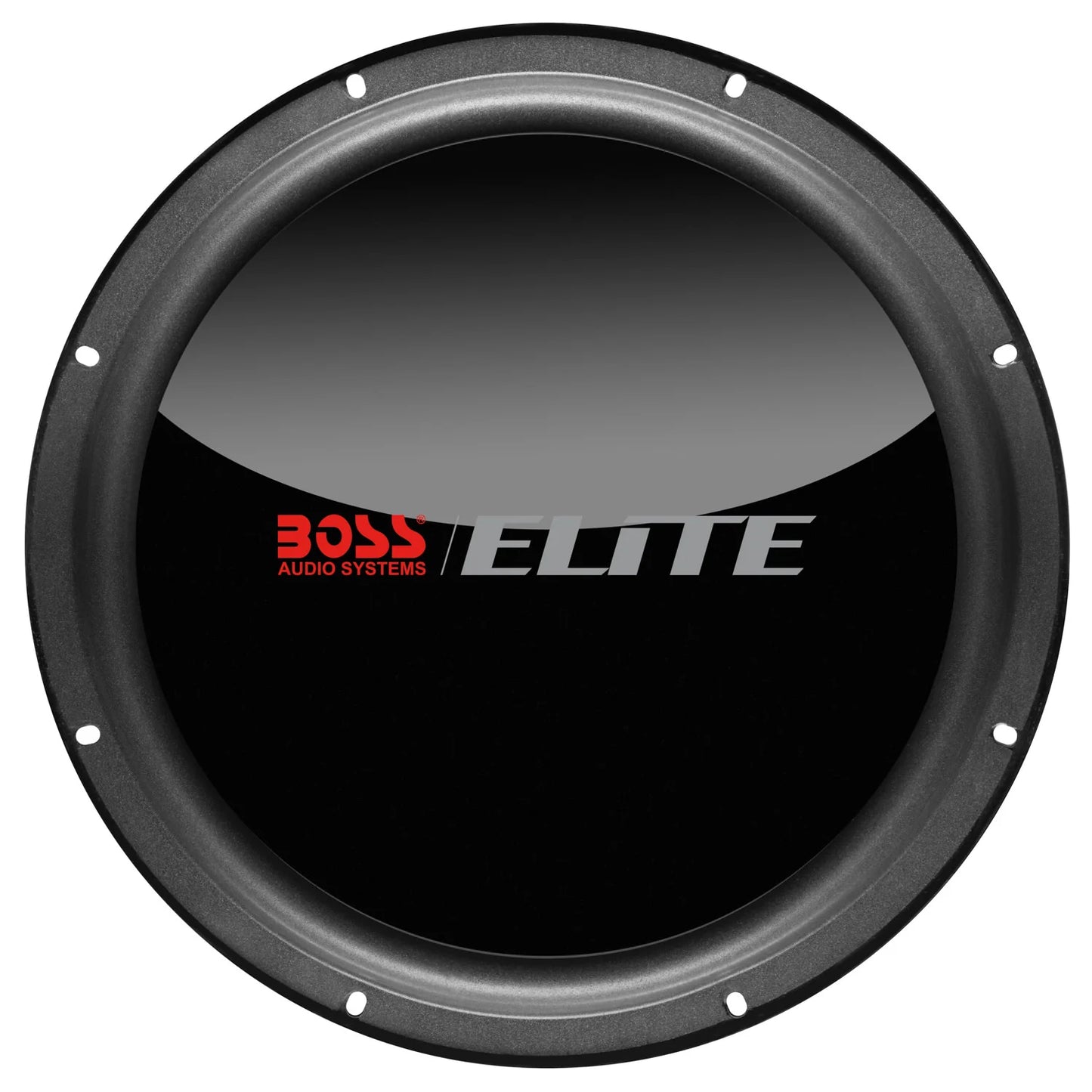

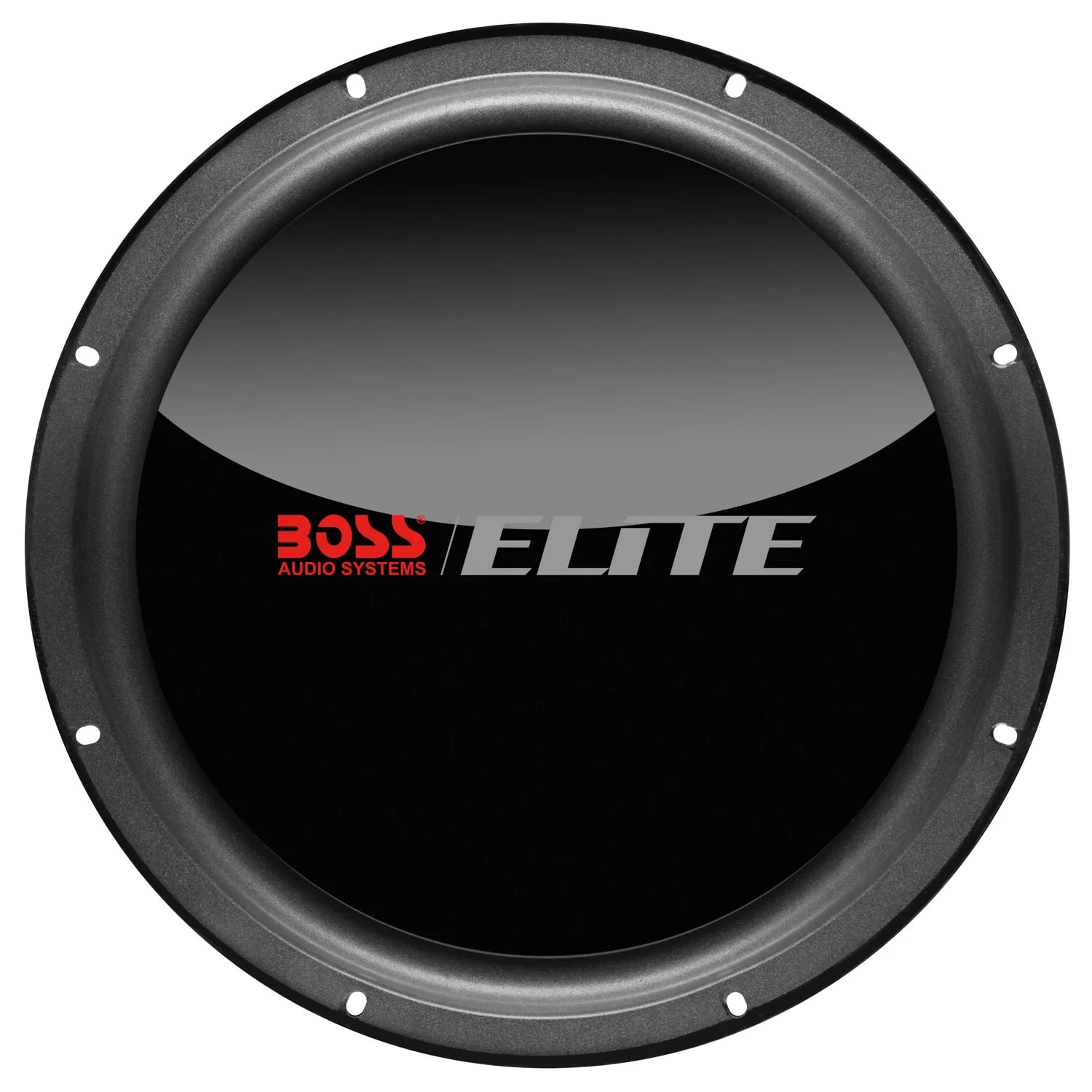

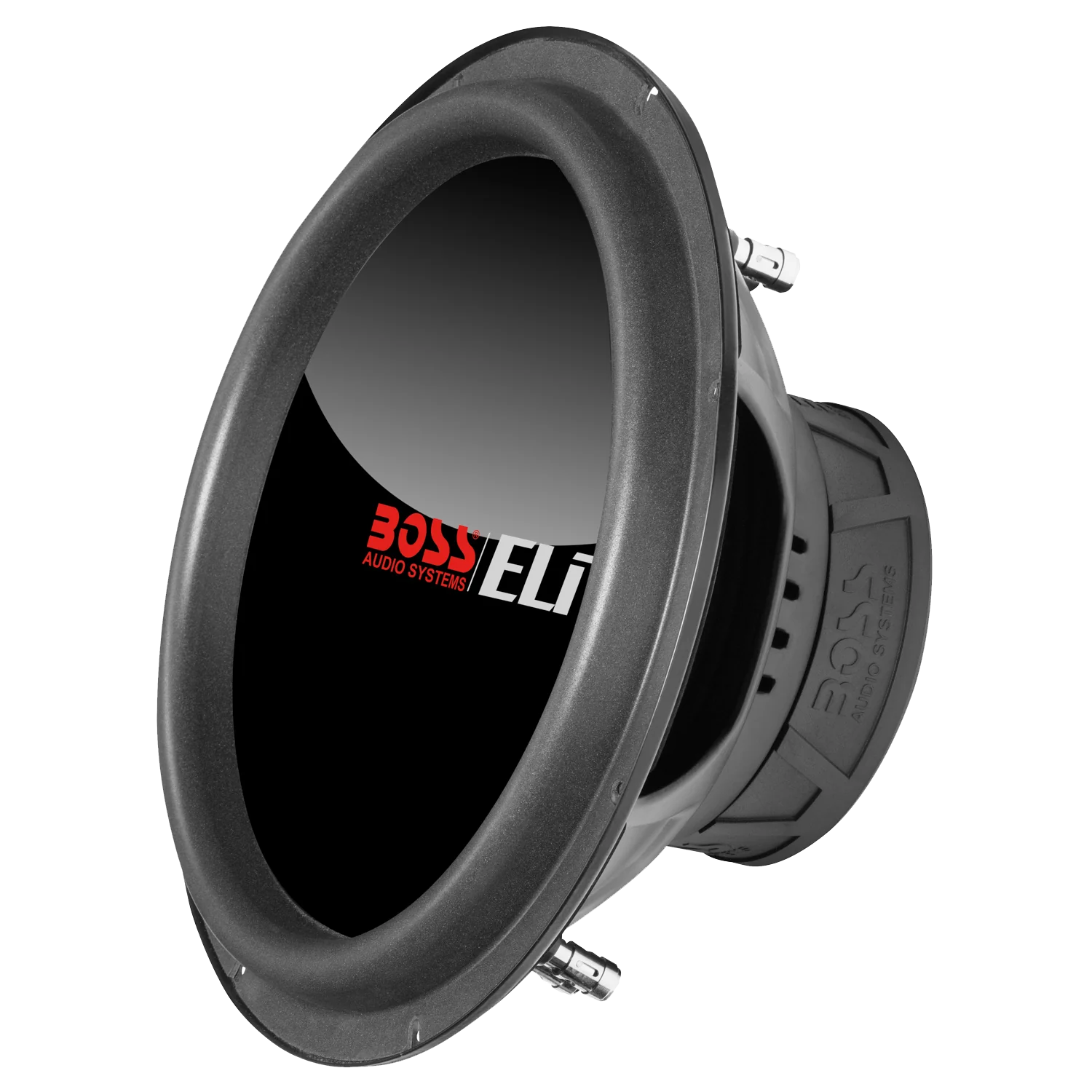

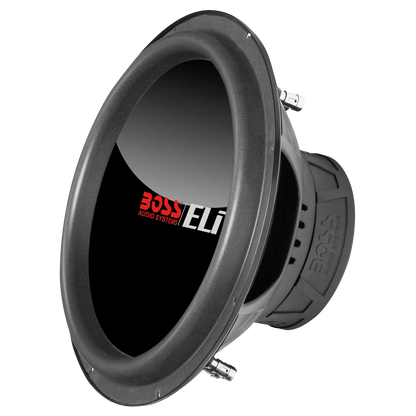

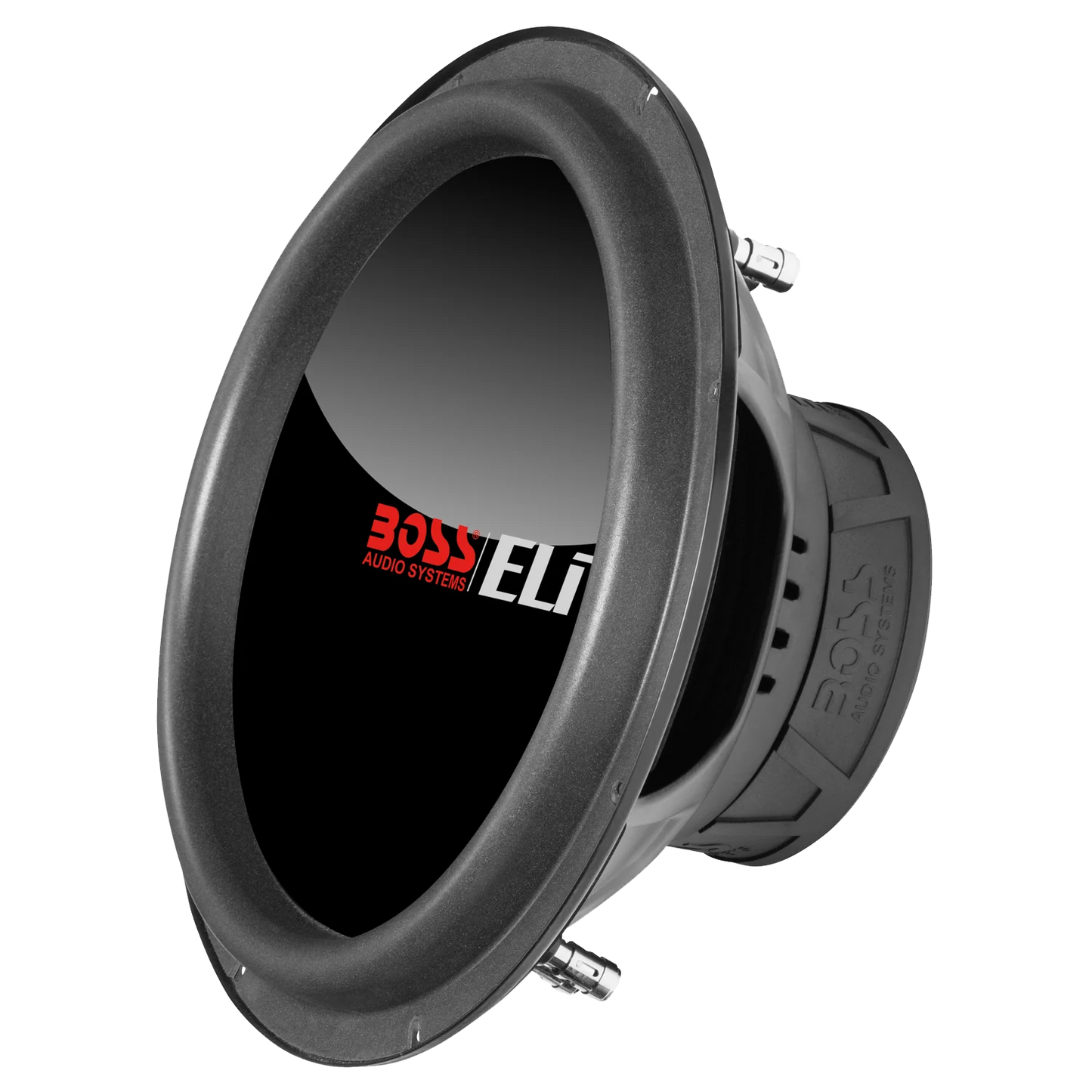

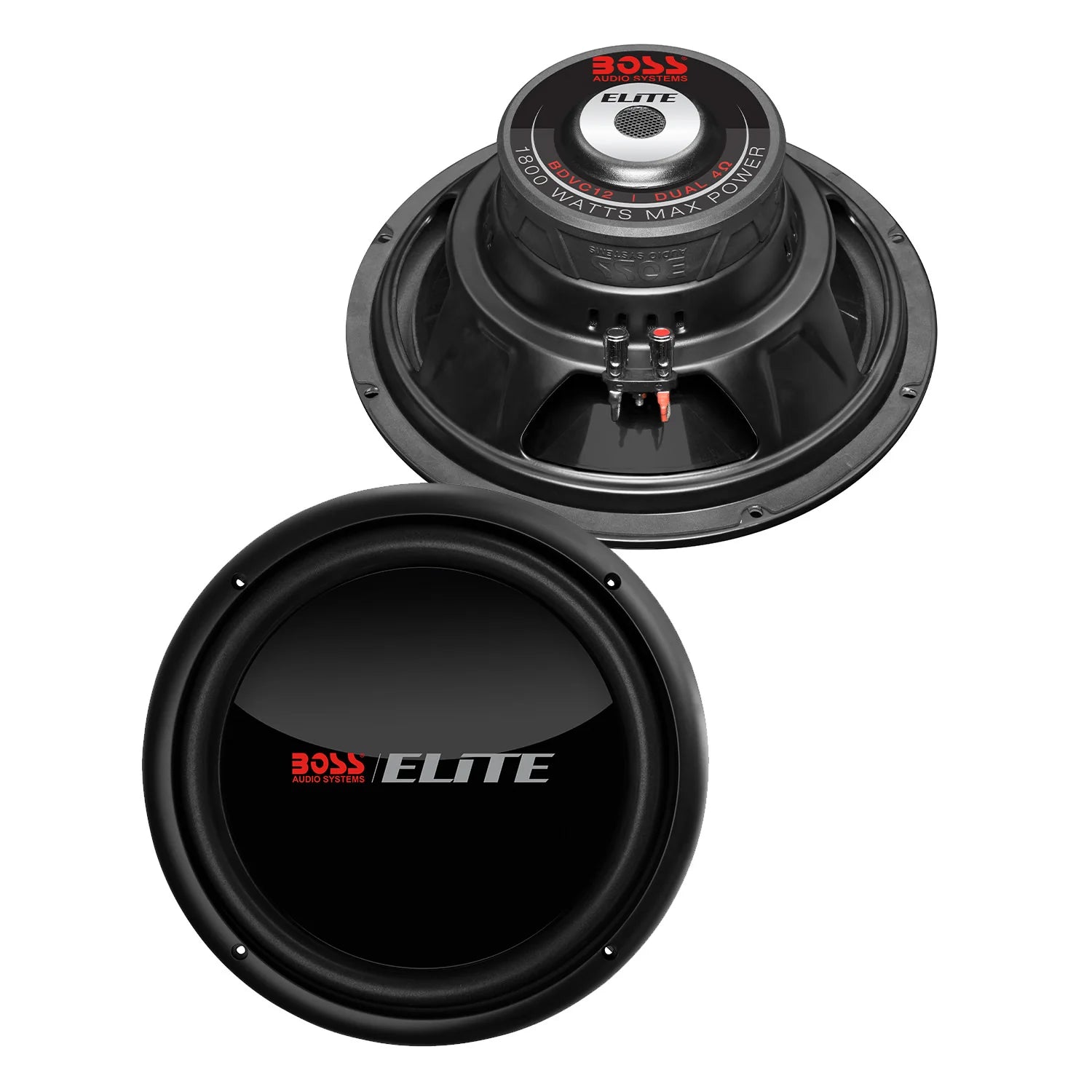

Elite - 12" Dual Voice Coil (4 Ohm) 1800W Subwoofer. (Sold Single)-BDVC12
Elite - 12" Dual Voice Coil (4 Ohm) 1800W Subwoofer. (Sold Single)-BDVC12
Regular price
$69.99 USD
Regular price
$84.99 USD
Sale price
$69.99 USD
Unit price
/
per
Shipping calculated at checkout.
• One 12" Woofer with DUAL 4 ohm Voice Coil
• 1800 Watts MAX 900 Watts RMS Power Handling
• 88dB Sensitivity, 34 Hz Resonant Frequency
• Poly Injection Cone and Foam Surround
• Works in 1.25 CuFt Sealed or 2 CuFt Ported enclosure
• 1800 Watts MAX 900 Watts RMS Power Handling
• 88dB Sensitivity, 34 Hz Resonant Frequency
• Poly Injection Cone and Foam Surround
• Works in 1.25 CuFt Sealed or 2 CuFt Ported enclosure
Product Specs
Key FeaturesGeneral Specs | Peak Power Handling | 1800 Watts |
RMS Power Handling | 900 Watts | |
Voice Coil Configuration | DUAL | |
Impedance | 4 ? | |
Mounting Dimensions | Mounting Diameter | 11 " |
Mounting Depth | 5.375 " | |
T/S Parameters | FS | 34 Hz |
Qes | 0.881 | |
Qms | 3.948 | |
Qts | 0.712 | |
Vas | 2.132 CuFt | |
Xmax (One-Way) | 10 mm | |
Sensitivity (1W/1m) | 88 dB | |
Enclosure Specs | Recommended Sealed | 1.25 CuFt |
Recommended Ported | 2 CuFt | |
Port Dimension | Round PORT_DIMENSION (excel value) | |
Port Length | 5 " | |
Port Frequency | 34 Hz |
General Specs | |
Peak Power Handling | 1800 Watts |
RMS Power Handling | 900 Watts |
Voice Coil Configuration | DUAL |
Impedance | 4 ? |
Mounting Dimensions | |
Mounting Diameter | 11 " |
Mounting Depth | 5.375 " |
T/S Parameters | |
FS | 34 Hz |
Qes | 0.881 |
Qms | 3.948 |
Qts | 0.712 |
Vas | 2.132 CuFt |
Xmax (One-Way) | 10 mm |
Sensitivity (1W/1m) | 88 dB |
Enclosure Specs | |
Recommended Sealed | 1.25 CuFt |
Recommended Ported | 2 CuFt |
Port Dimension | Round PORT_DIMENSION (excel value) |
Port Length | 5 " |
Port Frequency | 34 Hz |
