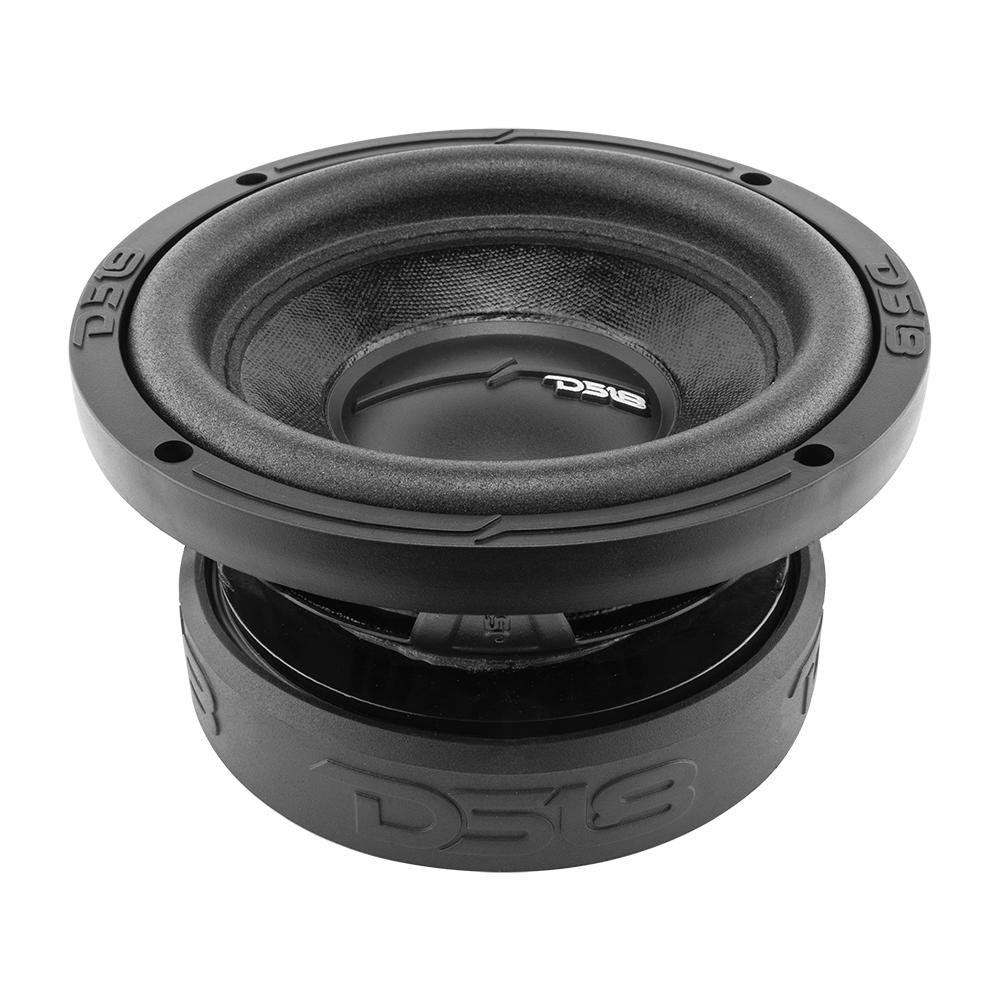

DS18 ZR6.4D
DS18 ZR6.4D
Regular price
$79.95 USD
Regular price
$99.99 USD
Sale price
$79.95 USD
Unit price
/
per
Shipping calculated at checkout.
Description
| Nominal Diameter | 6.5” |
| Nominal Impedance | 4+4 Ohms |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 82 dB |
| Frequency Response | 38Hz - 200Hz |
| Recommended Lo Pass Crossover | 160 Hz |
| MOTOR | |
| Voice Coil Diameter | 1.5” / 38.8mm |
| VC Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 50 oz |
| Displacement Volume | 0.02 ft3 |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 2.79 L |
| Excursion (one way) | 15mm |
| Free Air Resonance | 70Hz |
| Mechanical Factor | 3.611 |
| Electrical Factor | 0.86 |
| Total Factor | 0.695 |
| Moving Mass | 44.6g |
| Compliance | 96.01µ m/N |
| BL Factor | 6.53 |
| Voice Coil Inductance | 461.9m mH |
| Cone Area | 143 Cm2 |
| DC Resistance | 3.4 + 3.4 ohm |
| Efficiency Bandwidth Product | 81.4 |
| MEASUREMENTS | |
| Overall Diameter | 6.75” / 171.6mm |
| Overall Depth | 4.23” / 107.4mm |
| Front Mount Baffle Cutout | 5.54” / 140.8mm |
| Mounting Depth | 3.49” / 88.8mm |
| Motor Diameter | 5.23" / 133mm |
