DS18

DS18 PRO-X698BM

DS18 PRO-X698BM

Regular price $69.95 USD
Regular price $99.95 USD Sale price $69.95 USD
Sale Sold out
Shipping calculated at checkout.

Description

Model: PRO-X694BM
Type: Midrange Loudspeaker
Size: 6x9"
RMS Power: 275W
MAX Power: 550W

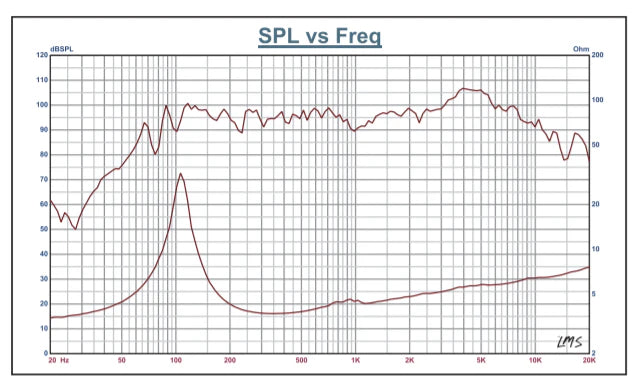

Frequency Response: 65Hz-12KHz
Impedance: 4 Ohms
Sensitivity: 98dB
Materials
Surround: Cloth Edge
Frame: Red Steel Basket
Cone: Non-Pressed Paper Cone
Magnet: Ferrite
Voice Coil Wire: CCAW

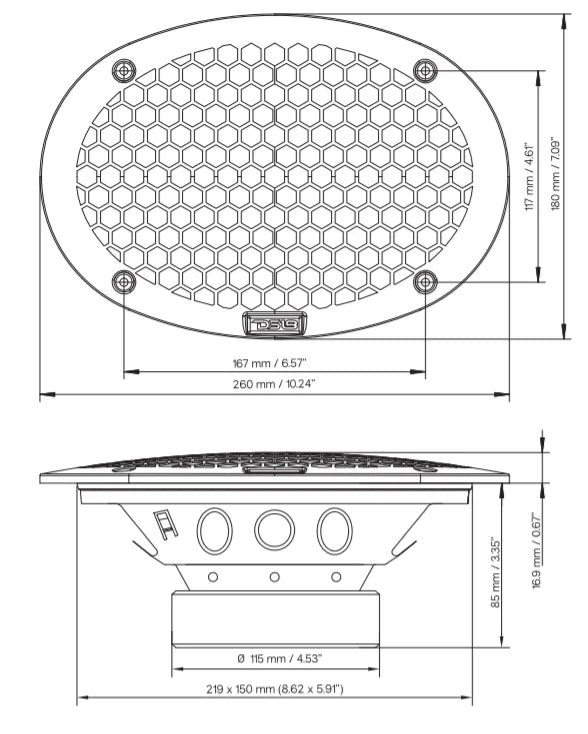

Measurements
Voice Coil Size: 1.5"
Magnet Weight: 27 oz.
Mounting Depth: 3.35"
Cut-Out Dimension: 8.62 x 5.91"
Parameters
Vas 14.69 LTR
Xmax 9.2 mm
Fs 105 Hz
Qms 7.382
Qes 0.941
Qts 0.835
Re 3.2 ohms
