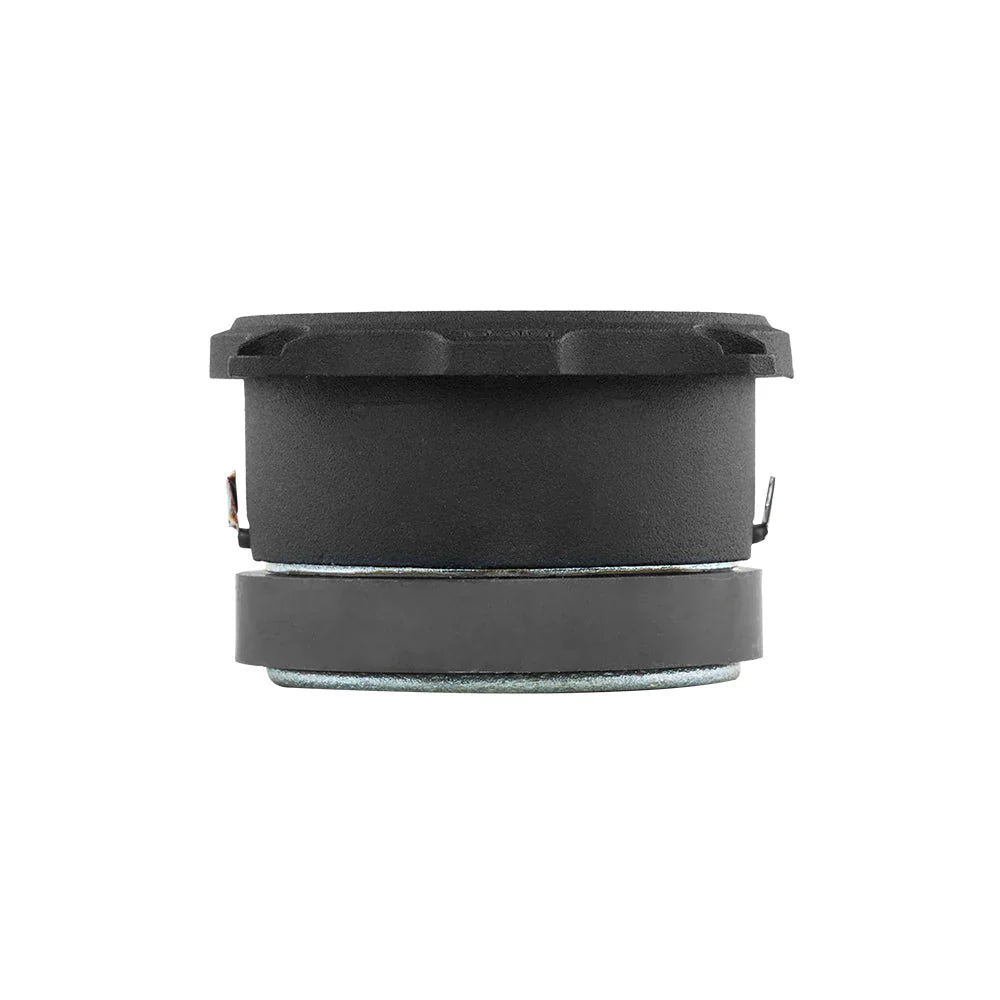

DS18 PRO-TW120B
DS18 PRO-TW120B
Regular price
$45.99 USD
Regular price
$39.95 USD
Sale price
$45.99 USD
Unit price
per
Shipping calculated at checkout.
Description
| SPECIFICATIONS | |
| Nominal Diameter | 3" |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 2KHz-20KHz |
| Recommended Hi Pass Crossover | 3 KHz |
| MOTOR | |
| Voice Coil Diameter | 1”/25.4 mm |
| Voice Coil Former Material | CCAW |
| Winding Materia | Aluminum |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 6.5 Oz |
| Body Material | Aluminum |
| MEASUREMENTS | |
| Overall Width | 3.14" / 80 mm |
| Overall Depth | 1.96" / 50 mm |
| Cutout Diameter | 2.83" / 72 mm |
| Mounting Depth | 1.65" / 42 mm |
| Adapter Ring Overall Width | 3.77" / 96 mm |
| Mounting Depth with Adapter Ring | 1.37" / 35 mm |
