DS18

DS18 PRO-TW120

DS18 PRO-TW120

Regular price $29.95 USD
Regular price $49.95 USD Sale price $29.95 USD
Sale Sold out
Shipping calculated at checkout.

Description

SPECIFICATIONS
Nominal Diameter 3"
Nominal Impedance 4 Ohms
AES Power Handling 60W
Program Power Handling 120W
Peak Power Handling 240W
Sensitivity (1w/1m) 103dB
Frequency Response 2KHz-20KHz
Recommended Hi Pass Crossover 3 KHz
MOTOR
Voice Coil Diameter 1”/25.4 mm
Voice Coil Former Material CCAW
Winding Materia Aluminum
Diaphragm Material Aluminum
Magnet Material Ferrite
Magnet Weight 6.5 Oz
Body Material Aluminum

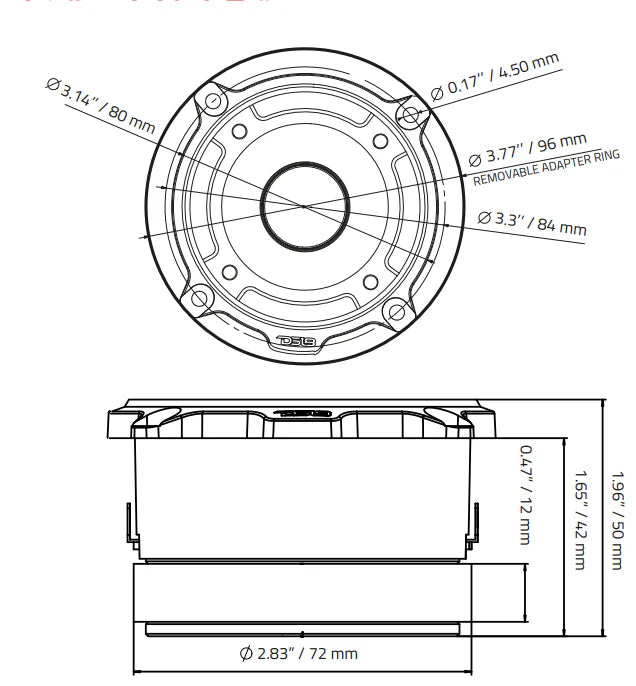

MEASUREMENTS
Overall Width 3.14" / 80 mm
Overall Depth 1.96" / 50 mm
Cutout Diameter 2.83" / 72 mm
Mounting Depth 1.65" / 42 mm
Adapter Ring Overall Width 3.77" / 96 mm
Mounting Depth with Adapter Ring 1.37" / 35 mm
