DS18 PRO-FR69NEO
DS18 PRO-FR69NEO
Regular price
$174.95 USD
Regular price
$199.95 USD
Sale price
$174.95 USD
Unit price
per
Shipping calculated at checkout.
Description
| Nominal Diameter | 6x9" |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 250w |
| MAX Power Handling | 500w |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 100Hz-9KHz |
| Recommended HI Pass Crossover | 120Hz |
| MOTOR | |
| Voice Coil Diameter | 38.6mm/1.5" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight | 2.8 Oz |
| Displacement Volume | 0.0524L |

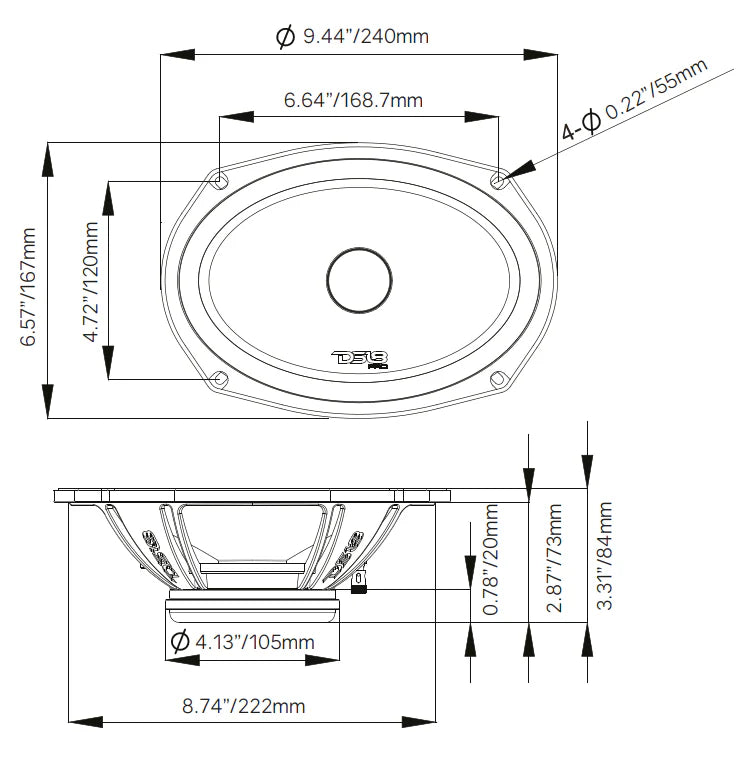

| MEASUREMENTS | |
| Overall Diameter | 9.44x6.57" |
| Overall Depth | 3.31" |
| Front Mount Baffle Cutout | 8.74x5.97" |
| Mounting Depth | 2.874" |
| Motor Diameter | 4.13" |
