DS18

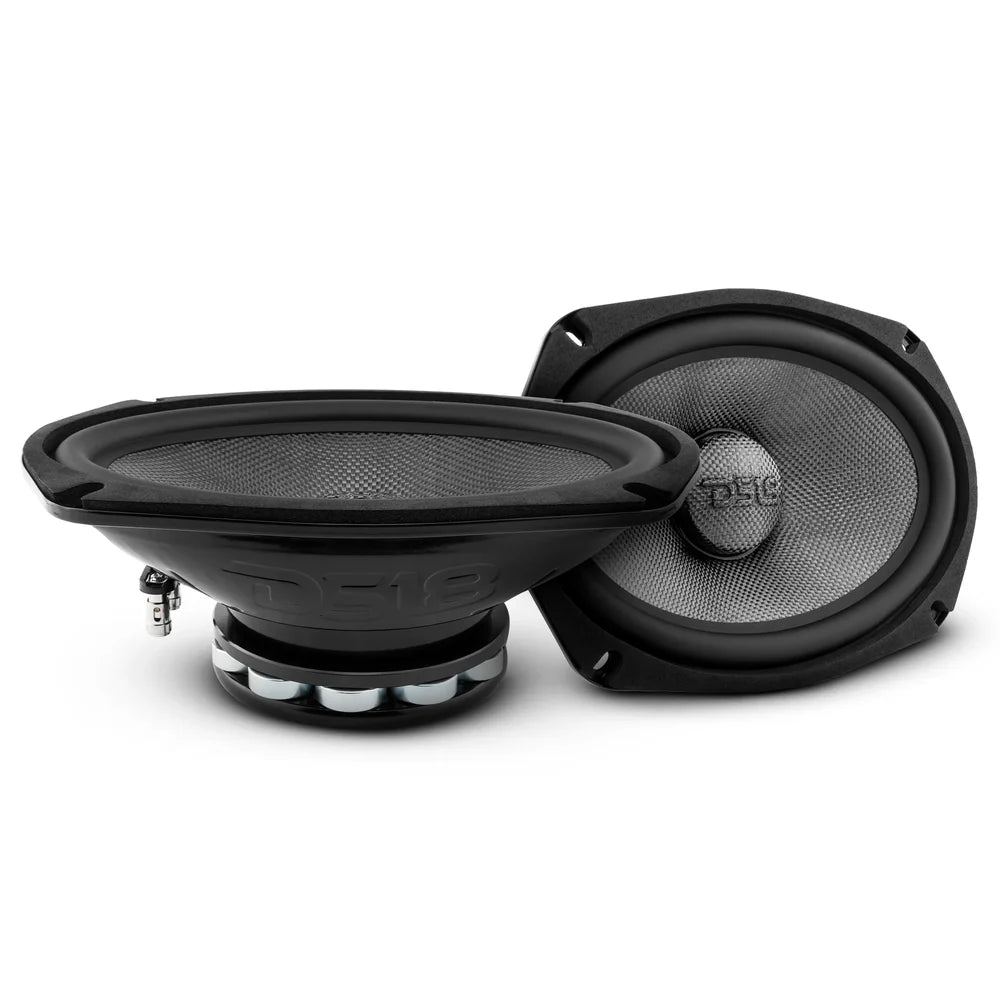

DS18 PRO-CF69.4NR

DS18 PRO-CF69.4NR

Regular price $209.95 USD
Regular price $239.95 USD Sale price $209.95 USD
Sale Sold out
Shipping calculated at checkout.

Description

Key Features

  • 6 x 9" Neodymium Water Resistant Loud Speaker
  • Max Power Handling: 600 watts
  • RMS Power Handling: 300 watts
  • Frequency Response: 63Hz-12KHz
  • Voice Coil Diameter: 2"
  • Voice Coil Material: CCAW
  • Impedance: 4-Ohms
  • Sensitivity: (1W/1M) 95dB
  • Magnet Weight: 0.3 Kg
  • Magnet Material: Neodymium
  • Mounting Depth: 3.25"

Great For:

    • Marine Applications
    • Off Road Applications
    • Home Studios
    • Bookshelf Speakers
    • Satellite
    • Surround Sound
    • Hi-Fi Installation
    • Car Audio
    • DIY Projects
SPECIFICATIONS
Nominal Diameter  6x9" / 152x228mm
Nominal Impedance  4 ohms
RMS Power Handling  300W
MAX Power Handling  600W
Sensitivity (1w/1m)  95dB
Frequency Response 63Hz-12KHz
Recommended HI Pass Crossover 80Hz
Pair or Single Single
Grill Included No
MOTOR
Voice Coil Diameter 2" / 50mm
Voice Coil Former Material  Kapton
Winding Material  CCAW
Cone Material WP Carbon Fiber
Dust Cap Material WP Carbon Fiber
Surround Material Rubber
Basket Material  Steel
Basket Color/Finish Gloss Black
Magnet Material Neodymium Rings
Magnet Weight 0.3Kg
MEASUREMENT
Overall Diameter 6.48x9.29" / 164.5x236mm
Overall Depth 3.44" / 87.5mm
Front Mount Baffle Cutout 5.94x8.58" / 151x218mm
Mounting Depth 3.25" / 82.5mm
Motor Diameter 4.45" / 113mm
