DS18 NXL-X8TPNEO/BK
DS18 NXL-X8TPNEO/BK
Regular price
$999.95 USD
Regular price
$1,089.95 USD
Sale price
$999.95 USD
Unit price
per
Shipping calculated at checkout.
Description
| General Specifications | |
| Nominal Diameter | 8 |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 180W |
| MAX Power Handling | 550W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 60Hz - 21Khz |
| Body / Features | |
| Enclosure Material | Injection PC+ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker |
| Grill Type | ABS+316 Stainless Metal Mesh |
| Pair | Yes |
| Clamps | Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue) |
| Front Logo | Yes, Can be Rotated For Correct Angle Display |
| Woofer Specifications | |
| Voice Coil Diameter | 2" |
| Cone Material | Waterproof Compress Paper + Carbon Fiber |
| Surround Material | Soft PC Damping Glued |
| Basket Material | PC Injection Molded Composite |
| Magnet Material | Neodymium |
| Magnet Grade | N40H |
| Passive Radiator | 4" With LED RGB Light |
| Tweeter Specifications | |
| Voice Coil Diameter | 1" |
| Type | Compression Driver with CNC Solid Aluminum Horn |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Crossover | 12dB with Over Power Protection |
| Thiele & Small Parameters | |
| Equivalent Volume | Vas - 17.5L |
| Excursion (one way) | Xmax - 3mm |
| Free Air Resonance | Fs- 62Hz |
| Total Factor | Qts - 0.756 |

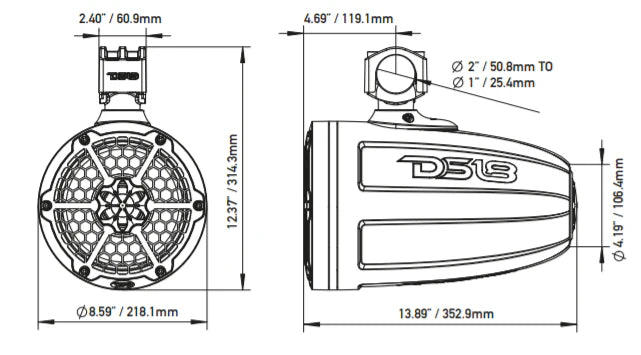

| Speaker Measurements | |
| Overall Diameter | 8.59" / 218.1mm |
| Overall Depth | 13.89" / 352.9mm |
| Overall Height | 12.37" / 314.3mm |
