DS18 NXL-X8TP/BK
DS18 NXL-X8TP/BK
Regular price
$699.95 USD
Regular price
$749.95 USD
Sale price
$699.95 USD
Unit price
per
Description
General Specifications | |
Nominal Diameter | 8" |
Nominal Impedance | 4 Ohms |
RMS Power Handling | 125 Watts |
MAX Power Handling | 375 Watts |
Sensitivity (1w/1m) | 93dB |
Frequency Response | 55Hz-23Khz |
Recommended HI Pass Crossover | 70 Hz |
Body / Features | |
Enclosure Material | Injection PC+ABS |
Marine Grade Type | IP65 + UV Stable |
RGB LED | Integrated RGB LED Speaker Lighting Integrated RGB LED Acrylic Ring Lighting and RGB LED Back Logo with 6 Core Wires for Lighting and Speaker |
Grill Type | ASA (Injection Grill) |

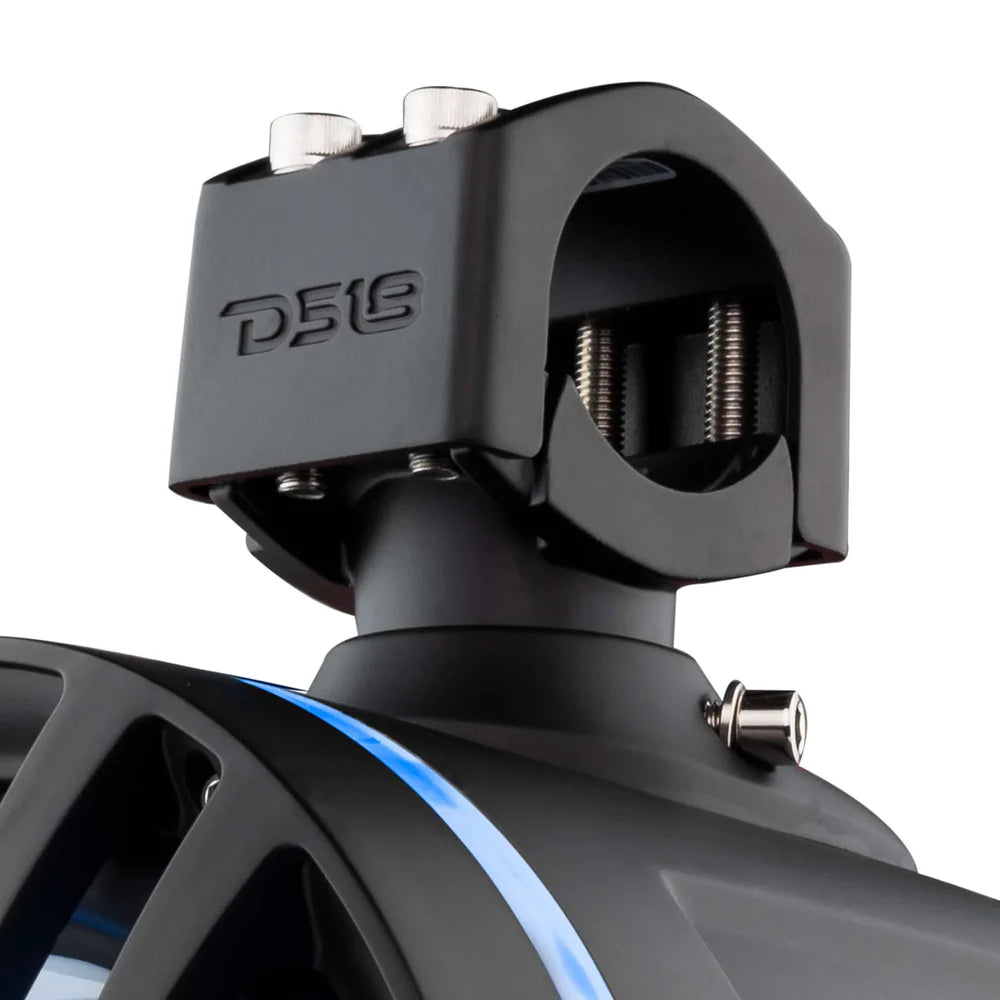

Clamps | Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue) |
Front/ Rear Logo | Can Be Rotated For Correct Angle |
Finish | Matte Black/Gloss White/Gloss Red |
Woofer Specification | |
Voice Coil Diameter | 1.2" |
Cone Material | Waterproof Injection Polypropylene |
Surround Material | Butyl |
Basket material | PC Injection Molded Composite |
Magnet Material | Ferrite |
Magnet Grade | Y35+N40H |
Tweeter Specifications | |
Voice Coil Diameter | 1" |
Diaphragm Material | Dome PEI Surround |
Magnet Material | Neodymium |
Crossover | 6dB/OCT |
Speaker Measurements | |
Overall Diameter | 8.59" / 218.1mm |
Overall Depth | 13.89" / 352.9mm |
Overall Height | 12.37" / 314.3mm |
