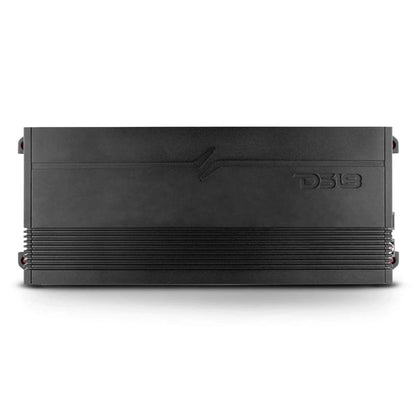

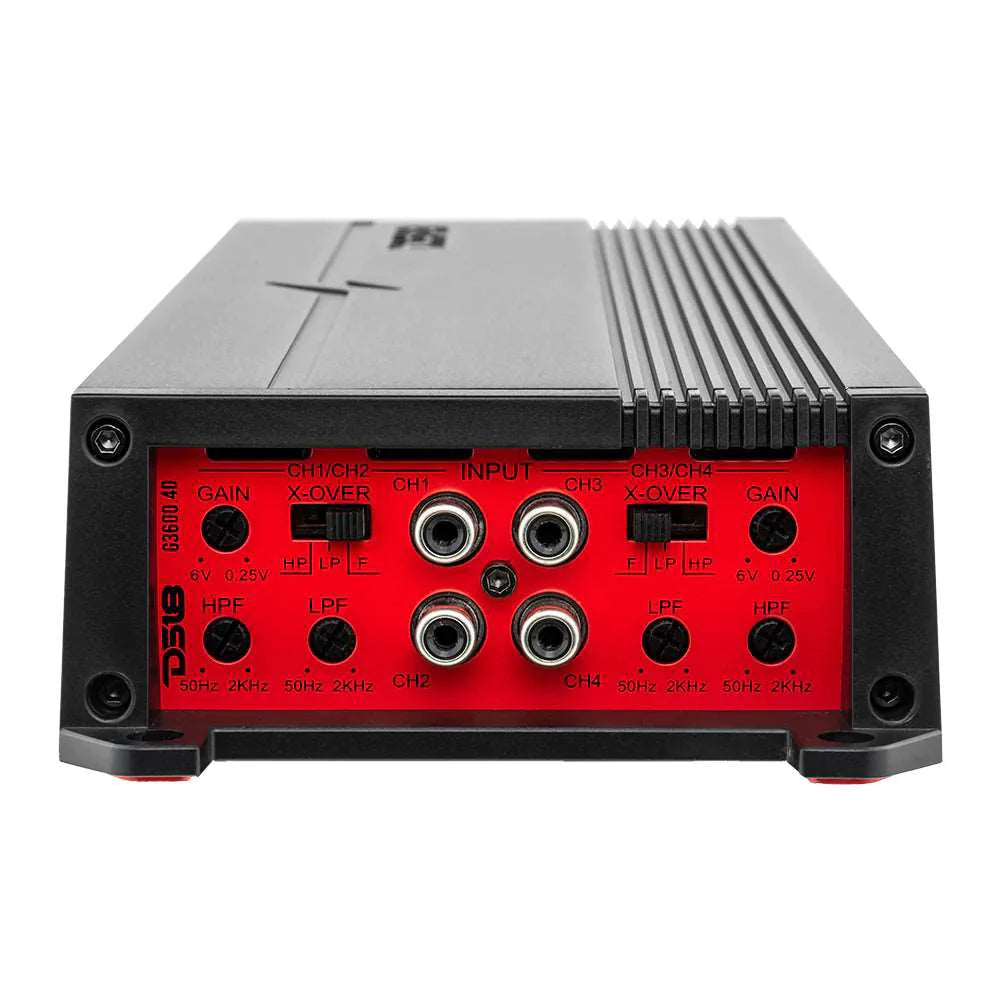

DS18 G3600.4D

DS18 G3600.4D

Regular price $289.95 USD
Regular price $299.95 USD Sale price $289.95 USD
Sale Sold out
Shipping calculated at checkout.

Description

SPECIFICATIONS
POWER
Total Watts (Peak) 3600W
RMS Power @ 4 ohm 4 x 300W
RMS Power @ 2 ohm 4 x 420W
RMS Power @ 4 ohm Bridge 2 x 740W
AUDIO
Frequency Response 20Hz-20KHz
Signal to Noise Ratio >93dB
Efficiency @ 4ohm 80%
Damping Factor 78
Input Impedance 22K
Channel Separation 70dB
Total Harmonic Distortion (THD) 0.01%
Low Level Input Range 0.25-6V
High Level Input NO
Selectable X-Over LPF/FLAT/HPF
X-Over Filter Range 50 - 250Hz
Bass Boost Range N/A
Bass Boost Frequency N/A
Infrasonic Filter N/A
Phase Selector NO
FEATURES
Amplifier Class Digital (D)
Amplifier Type 4CH Full Range
Number of Channels 4CH
Minimum Impedance 2 ohm St / 4 ohm Bridge
Led Indicator Power / Protection / Clip
Power Input Terminal Size 4ga
Fuse Size 3 x 40A
Remote Level Control NO
Cooling Fan NO
Voltmeter  NO
Thermal Protection YES
Over-Load Protection YES
DC Output Protection YES
Short Circuit Output Protection YES
Voltage Input Protection YES
Clipping Protection  YES
Body Color / Finish Matte black
MEASUREMENT
Overall Length 12" / 305mm
Overall Wide 4.72" / 120mm
Overall Height 1.96" / 50mm
Heatsink Length  10.15" / 258mm
Gross Single Unit Weight 1.9KG

Product features

Materials and care

Merchandising tips

View full details
